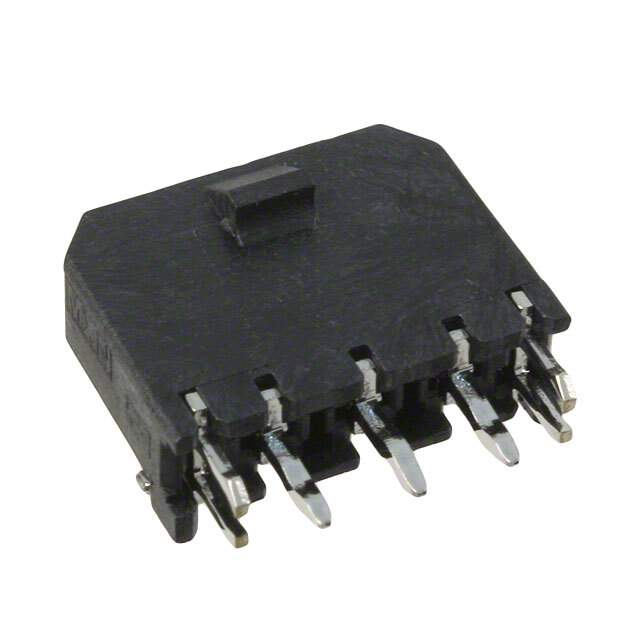

43650-0318 Real Image
Same model may have multiple batches, images only for reference.

43650-0318

Part No 43650-0318
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Micro-Fit 3.0 Through Hole PCB Header, Vertical, 3 Contacts, 1 Rows, 3mm Pitch
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package 0318
Color Black
Contact Gender Male
Contact Material Brass
Contact Plating Tin
Country of Origin US
Current Rating 5 A
Gender Male
Glow Wire Compliant Compliant
Halogen Free Low Halogen
Height 10.26 mm
Housing Material Thermoplastic
Maximum Operating Temperature 105 °C
Max Voltage Rating (AC) 250 V
Min Operating Temperature -40 °C
Mount Through Hole
Number of Circuits 3
Number of Contacts 3
Number of Positions 3
Number of Rows 1
Orientation Vertical
Pitch 3 mm
Plating Tin
Radiation Hardening No
RoHS Compliant
Schedule B 8536695050, 8536695050
Termination Solder
Voltage Rating 600 V
Win Source Part Number 1017410-43650-0318
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 43650-0318 CAD Model

Description

This Molex connector features a vertical orientation and has a pitch of 3 mm.

  • Orientation: Vertical
  • Pitch: 3 mm
  • Number of Positions: 3
  • Number of Rows: 1
  • Termination: Solder
  • Contact Material: Brass
  • Contact Plating: Tin
  • Voltage Rating: 600 V
  • Current Rating: 5 A
  • Housing Material: Thermoplastic
  • Halogen: Low Halogen
  • RoHS Compliant: Yes
  • Minimum Operating Temperature: -40 °C
  • Maximum Operating Temperature: 105 °C
  • Glow Wire Compliant: Yes
  • Mounting: Through Hole
