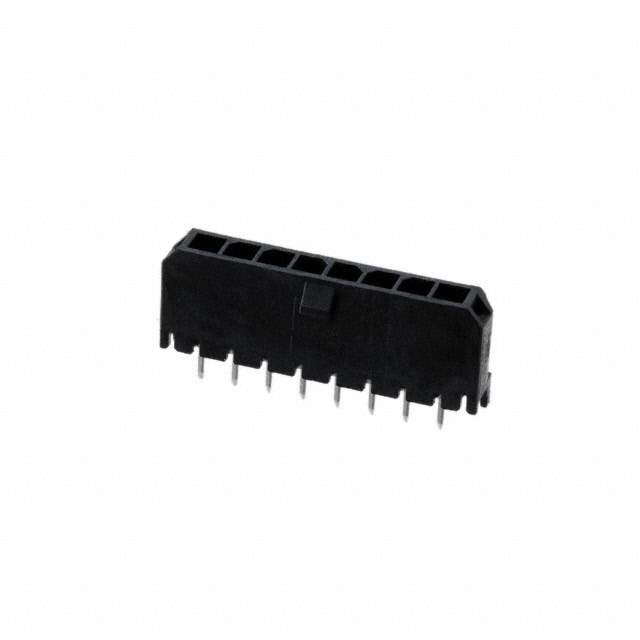

0436500827 Real Image
Same model may have multiple batches, images only for reference.

0436500827

Part No 0436500827
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 8POS 3MM / Connector Header Through Hole 8 position 0.118" (3.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Number of Positions 8
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.125" (3.18mm)
Insulation Height 0.390" (9.91mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100.0µin (2.54µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Features Board Guide
Material Flammability Rating UL94 V-0
Insulation Color Black
Mated Stacking Heights 17.56mm
Applications General Purpose, Medical, Military, Telecommunications
Base Product Number 043650
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 436500827,WM10674,0436-50-0827,0436500827-ND,43650-0827,043650-0827
Standard Package 1,122
Win Source Part Number 1332781-0436500827
Ultra Librarian 3D Model Ultra Librarian 0436500827 CAD Model

Description

This 8-position male pin header connector from Molex is an ideal choice for a wide range of applications, including medical, military, telecommunications, and general-purpose use.

  • Pitch Mating: 0.118-inch (3.00mm)
  • Connection Type: Board-to-Cable/Wire
  • Fastening: Locking Ramp
  • Positions Loaded: All
  • Design: Shrouded 4-Wall
  • Contact Material: Brass
  • Contact Finish: Tin
  • Insulation Material: Liquid Crystal Polymer (LCP) and Glass-Filled
  • Insulation Color: Black
  • Flammability Rating: UL94 V-0
  • Contact Length (Post): 0.125 inches (3.18mm)
  • Insulation Height: 0.390 inches (9.91mm)
  • Voltage Rating: Not Specified
  • Operating Temperatures: Not Specified
  • Mounting: Through-Hole
  • Packaging: Trays
  • Standard Package: 1,122 connectors
