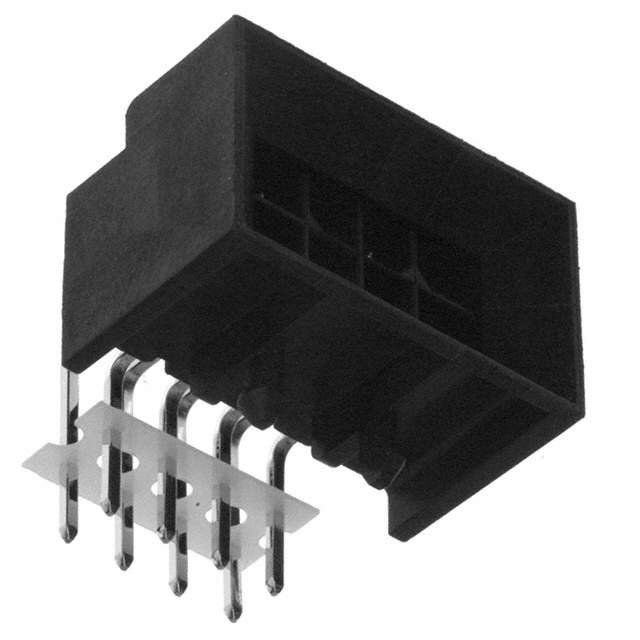

Same model may have multiple batches, images only for reference.

44428-0801

Name: 44428-0801
Brand: Molex, LLC
SKU: 1033952
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	44428-0801
Manufacturer	Molex, LLC
Catalog	Circular Connectors - Housings
Description	3.00mm Pitch Micro-Fit 3.0 BMI Header, Surface Mount Compatible, Dual Row, Right Angle,
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Color	Black
Contact Gender	Male
Contact Material	Brass
Contact Plating	Tin
Contact Resistance	30 mΩ
Country of Origin	US
Current Rating	5 A
Depth	18.71 mm
Flammability Rating	UL94 V-0
Gender	Male
Glow Wire Compliant	Non-compliant
Housing Color	Black
Housing Material	Thermoplastic
Insulation Resistance	1 GΩ
Lead Free	Contains Lead
Lead Pitch	3 mm
Length	19 mm
Maximum Operating Temperature	105 °C
Min Operating Temperature	-40 °C
Mount	Through Hole
Number of Circuits	8
Number of Contacts	8
Number of Positions	8
Number of Rows	2
Orientation	Right Angle
Pitch	3 mm
Plating	Tin
Radiation Hardening	No
RoHS	Compliant
Row Spacing	3 mm
Termination	Solder
Voltage Rating	600 V
Voltage Rating (DC)	250 V
Win Source Part Number	1033952-44428-0801
Categories	Circular Connectors - Housings
Manufacturer	Molex, LLC
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian 44428-0801 CAD Model

Alternative Products

Description

The Molex 1033952-44428-0801 is a black male right angle connector with a pitch of 3mm and 8 positions.

Pitch: 3mm
Positions: 8
Current Rating: 5A
Voltage Rating: 600V
Contact Material: Brass
Housing Material: Thermoplastic
Contact Resistance: 30 mΩ
Insulation Resistance: 1 GΩ
RoHS Compliant: Yes
Maximum Operating Temperature: 105 °C
Mounting: Through Hole
Lead Pitch: 3mm
