Same model may have multiple batches, images only for reference.

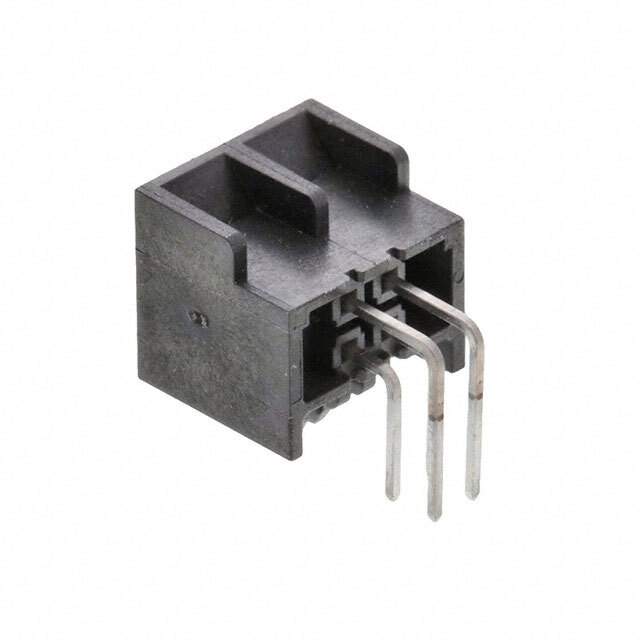

444280403 Real Image
Same model may have multiple batches, images only for reference.

444280403

Part No 444280403
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description MICROFIT BMI RA DR HDR PEGS 30AU
Datasheet
444280403 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Series Micro-Fit 3.0 BMI 44428
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Number of Positions 4
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Post 0.138" (3.50mm)
Insulation Height 0.469" (11.90mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30μin (0.76μm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon, Glass Filled
Features Board Lock
Material Flammability Rating UL94 V-0
Insulation Color Black
Contact Finish Thickness - Post 100μin (2.54μm)
Applications General Purpose, Medical, Military, Telecommunications
Win Source Part Number 763656-444280403
Popularity Medium
Supply and Demand Status Balance
Family Name 44428
Introduction Date July 08, 2010
ECCN EAR99
Country of Origin China, Mexico, United States of America
Halogen Free Not Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 444280403 CAD Model

Description

The Molex, LLC 763656-444280403 is a connector that belongs to the Micro-Fit 3.0 BMI 44428 series.

  • Positions: 4
  • Shrouding: 4 Wall
  • Pitch: 0.118" (3.00mm)
  • Connector Type: Header
  • Contact Type: Male Pin
  • Positions Loaded: All
  • Number of Rows: 2
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Contact Material: Brass
  • Material Flammability Rating: UL94 V-0
  • Applications: General Purpose, Medical, Military, Telecommunications
  • Mounting: Through Hole, Right Angle
  • Insulation Material: Polyamide (PA), Nylon, Glass Filled
  • Contact Finish - Mating: Gold
  • Contact Finish Thickness - Mating: 30μin (0.76μm)
  • Contact Finish - Post: Tin
  • Contact Finish Thickness - Post: 100μin (2.54μm)
  • Insulation Color: Black
  • Row Spacing - Mating: 0.118" (3.00mm)
  • Contact Length - Post: 0.138" (3.50mm)
  • Insulation Height: 0.469" (11.90mm)
  • Contact Shape: Square
  • Alternative Parts: 44428-0402
  • ECCN: EAR99
  • Popularity: Medium
  • Supply and Demand Status: Balance
  • Country of Origin: China, Mexico, United States of America
  • EOL Date: 2028
  • Halogen Free: No
