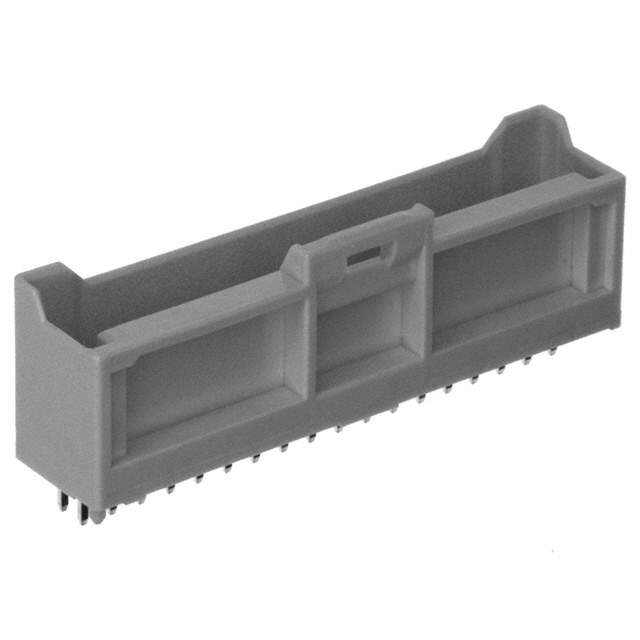

501645-3620 Real Image
Same model may have multiple batches, images only for reference.

501645-3620

Part No 501645-3620
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Shrouded Header (4 Sides) HDR 36 POS 2mm Solder ST Top Entry Thru-Hole iGrid™ Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Natural
Connector Type Male Pin
Contact Material Brass
Contact Plating Tin
Country of Origin VN
Current Rating 2 A
Depth 8.2 mm
Fastening Type Latch
Gender Male
Glow Wire Compliant Non-compliant
Housing Color Natural
Housing Material Nylon
Lead Pitch 2 mm
Length 38 mm
Max Operating Temperature 85 °C
Max Voltage Rating (AC) 250 V
Max Voltage Rating (DC) 250.25 kV
Min Operating Temperature -25 °C
Mount Through Hole
Number of Circuits 36
Number of Contacts 36
Number of Positions 36
Number of Rows 2
Orientation Vertical
Pitch 2 mm
Plating Tin
REACH SVHC No SVHC
RoHS Compliant
Row Spacing 2.0066 mm
Termination Solder
Voltage Rating (AC) 250 V
Voltage Rating (DC) 250 V
Win Source Part Number 1228123-501645-3620
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 501645-3620 CAD Model

Description

This circular connector housing from Molex is a high-quality product suitable for a wide range of applications.

  • Pitch: 2 mm
  • Current Rating: 2 A
  • Voltage Rating (DC): 250.25 kV
  • Contact Material: Brass
  • Contact Plating: Tin
  • RoHS Compliant: Yes
  • Mounting: Through-Hole
  • Housing Material: Nylon
  • Housing Color: Natural
