Same model may have multiple batches, images only for reference.

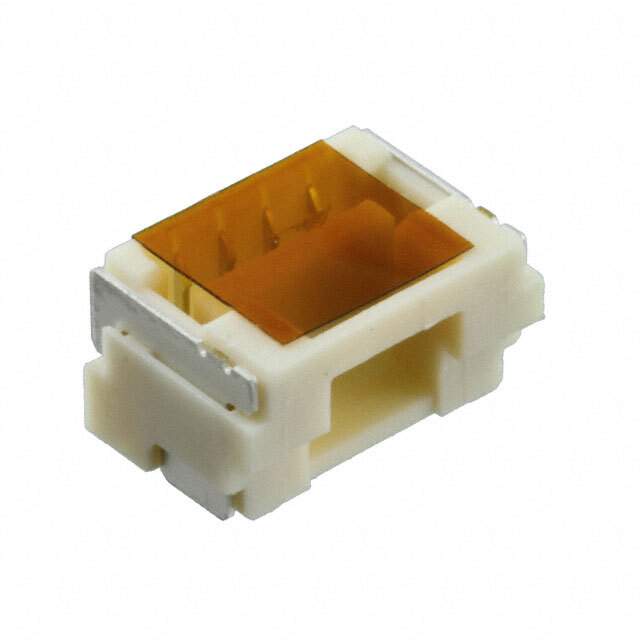

502382-0472 Real Image
Same model may have multiple batches, images only for reference.

502382-0472

Part No 502382-0472
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description 1.25W/BSGLSTRECASSY4CKTEMBSTPPKGW/POLYIMIDE Film Rohs Compliant: Yes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Natural
Connector Type Center Strip Contact, Forked, Receptacle
Contact Gender Female
Contact Plating Tin
Current Rating 1 A
Depth 5.55 mm
Fastening Type Latch
Flammability Rating UL94 V-0
Housing Color Natural
Housing Material Thermoplastic
Length 8.35 mm
Maximum Operating Temperature 85 °C
Max Voltage Rating (AC) 50 V
Max Voltage Rating (DC) 50 V
Min Operating Temperature -25 °C
Mount Surface Mount
Number of Contacts 4
Number of Positions 4
Number of Rows 1
Orientation Straight
Pitch 1.25 mm
Radiation Hardening No
RoHS Compliant
Termination Solder
Voltage Rating (AC) 50 V
Win Source Part Number 960232-502382-0472
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 502382-0472 CAD Model

Description

This is a center strip contact, forked, and receptacle connector manufactured by Molex LLC.

  • Win Source Part Number: 960232-502382-0472
  • Positions: 4
  • Pitch: 1.25 mm
  • Row: 1
  • Termination: Solder
  • Fastening Type: Latch
  • Current Rating: 1 A
  • Number of Contacts: 4
  • Length: 8.35 mm
  • Housing Material: Thermoplastic
  • Orientation: Straight
  • Depth: 5.55 mm
  • RoHS Compliant: Yes
  • Supply and Demand Status: Shortage
