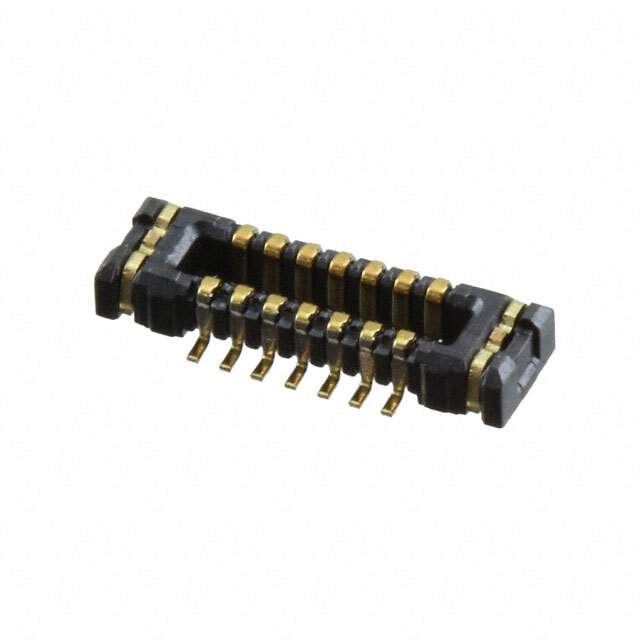

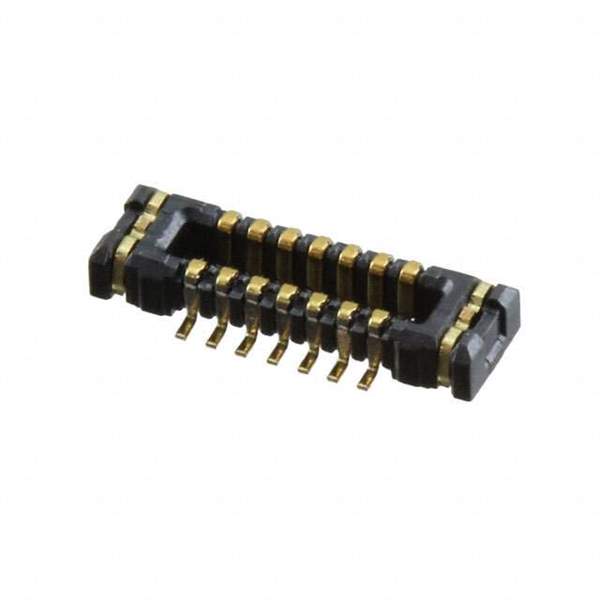

5024301410

Name: 5024301410
Brand: Molex, LLC
SKU: 856285
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	5024301410
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN PLUG 14POS SMD GOLD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Molex, LLC
Series	SlimStack 502430
Package	Tape & Reel
Product Status	Obsolete
Connector Type	Plug, Outer Shroud Contacts
Number of Positions	14
Pitch	0.016" (0.40mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	Solder Retention
Contact Finish	Gold
Contact Finish Thickness	4.00µin (0.100µm)
Mated Stacking Heights	1mm
Height Above Board	0.031" (0.80mm)
Base Product Number	502430
Standard Package	3,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	856285-5024301410
Ultra Librarian 3D Model	Ultra Librarian 5024301410 CAD Model

Alternative Products

Description

The 856285-5024301410 is a rectangular connector array designed for edge type mezzanine (board to board) applications and is part of the SlimStack 502430 series from Molex.

Connector Type: Rectangular connector array
Application: Edge type mezzanine (board to board)
Series: SlimStack 502430
Positions: 14
Pitch: 0.016 inches (0.40mm)
Feature: Solder retention
Contact Finish: Gold
Contact Finish Thickness: 4.00µin (0.100µm)
Package: Tape and reel
Standard Package Quantity: 3,000 pieces
Mounting: Surface mount
Height Above Board: 0.031 inches (0.80mm)
Product Status: Obsolete
