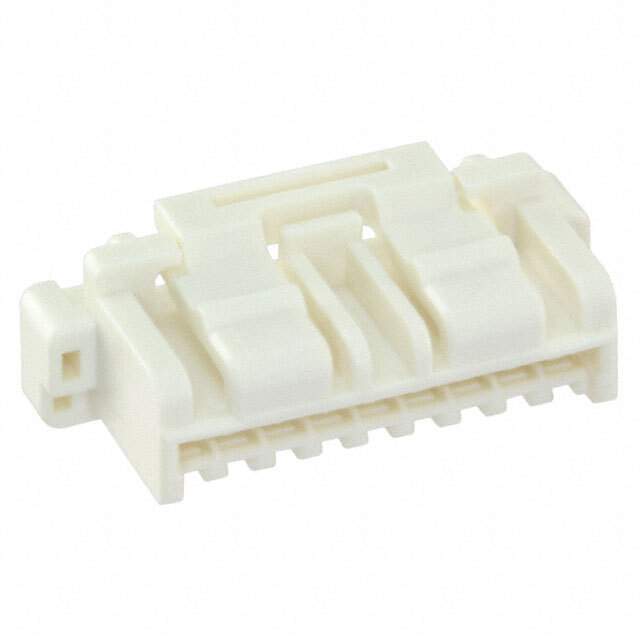

5025780900 Real Image
Same model may have multiple batches, images only for reference.

5025780900

Part No 5025780900
Manufacturer Molex, LLC
Catalog Custom Parts (0 - A)
Description 1.50mm Pitch CLIK-Mate™ Wire-to-Board Housing, Single Row, Positive Lock, 9 Circuits
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Beige
Connector Type Non-Gendered, Plug
Contact Gender Male
Country of Origin JP
Current Rating 2 A
Depth 8.6 mm
Fastening Type Latch
Glow Wire Compliant Non-compliant
Housing Color Beige
Housing Material Polybutylene
Length 17.8 mm
Max Operating Temperature 85 °C
Min Operating Temperature -25 °C
Mount Free Hanging
Number of Contacts 9
Number of Pins 9
Number of Positions 9
Number of Rows 1
Orientation Straight
Pitch 1.5 mm
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Termination Crimp
Voltage Rating 100 V
Win Source Part Number 1205039-5025780900
Categories Custom Parts
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 5025780900 CAD Model

Description

The Molex 1205039-5025780900 is a 9-position plug connector with a pitch of 1.5 mm.

  • Positions: 9
  • Pitch: 1.5 mm
  • Gender: Non-gendered
  • Termination: Crimp
  • Voltage Rating: 100 V
  • Current Rating: 2 A
  • Rows: Single
  • Fastening Type: Latch
  • Housing Material: Polybutylene
  • Orientation: Straight
  • Housing Color: Beige
  • Contact Gender: Male
  • Alternative Part: 502578-0900
  • RoHS Compliant: Yes
  • Voltage Rating: 100 V
