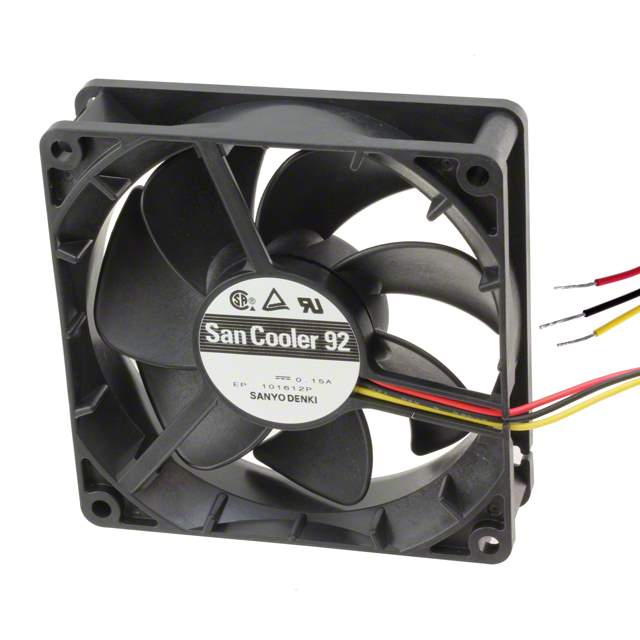

Part No 9A0912H401
Manufacturer Sanyo Denki America Inc.
Catalog DC Fans
Description FAN 92X25MM 12VDC TACH  /  Fan Tubeaxial 12VDC Square - 92mm L x 92mm H Ball 51.2 CFM (1.43m³/min) 3 Wire Leads
Datasheet
9A0912H401 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>DC Brushless Fans (BLDC)
Mfr Sanyo Denki America Inc.
Series San Cooler 92
Package Box
Voltage - Rated 12VDC
Dimension Square - 92mm L x 92mm H
Width 25.00mm
Air Flow 51.2 CFM (1.43m³/min)
Static Pressure 0.177 in H2O (44.1 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection, Speed Sensor (Tach)
Noise 33.0dB(A)
Power (Watts) 2.52 W
RPM 3150 RPM
Termination 3 Wire Leads
Temperature Range - Operating -4 ~ 158°F (-20 ~ 70°C)
Approval Agency CSA, TUV, UL
Weight 0.222 lb (100.7 g)
Current Rating (Amps) 0.210A
Voltage Range 6 ~ 13.8VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 40000 Hrs @ 60°C
Base Product Number 9A0912
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8414.59.6590
Other Names 1688-1344
Standard Package 28
Win Source Part Number 1215220-9A0912H401
Ultra Librarian 3D Model Ultra Librarian 9A0912H401 CAD Model

Description

The San Cooler 92 series is a set of DC Brushless Fans (BLDC) that features locked rotor protection and speed sensor (Tach). The 1215220-9A0912H401 is a product in this series and comes with 3 wire leads termination.

  • Termination: 3 Wire Leads
  • Packaging: Box
  • Ingress Protection: -
  • Supply and Demand Status: Unlimited
  • Voltage Range: 6 ~ 13.8VDC
  • Power (watts): 2.52 W
  • Lifetime @ Temperature: 40000 Hrs @ 60°C
  • Weight: 0.222 lb (100.7 g)
  • Width: 25.00mm
  • Air Flow: 51.2 CFM (1.43m³/min)
  • Static Pressure: 0.177 in H2O (44.1 Pa)
  • Bearing Type: Ball
  • Fan Type: Tube Axial
  • Noise: 33.0dB(A)
  • RPM: 3150 RPM
  • Frame and Blade Material: Plastic
  • Operating Temperature Range: -4 ~ 158°F (-20 ~ 70°C)
  • ECCN: EAR99
  • Current Rating (amps): 0.210A
  • HTSUS code: 8414.59.6590
  • Other Names: 1688-1344
  • Approval Agencies: CSA, TUV, UL
