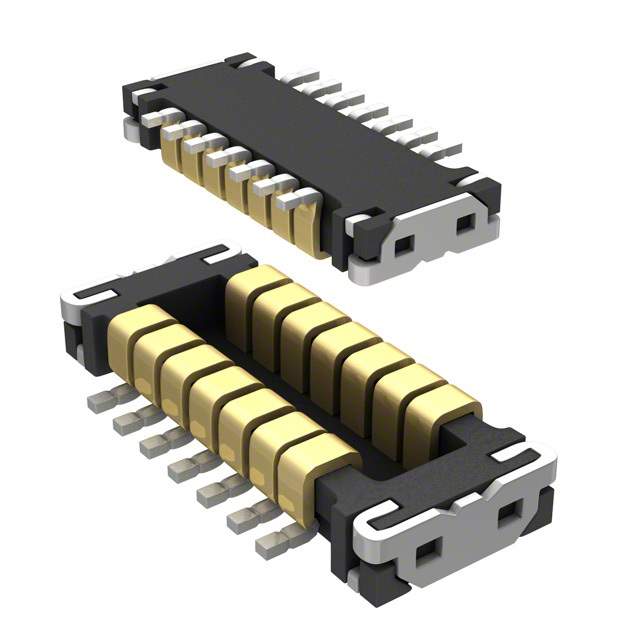

5035521422 Real Image
Same model may have multiple batches, images only for reference.

5035521422

Part No 5035521422
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN PLUG 14POS SMD GOLD / 14 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer Molex
Packaging Reel - TR
Connector Type Plug, Outer Shroud Contacts
Number of Positions 14
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Surface Mount
Features Pick and Place, Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.7mm
Height Above Board 0.023" (0.59mm)
Base Product Number 503552
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 23-5035521422CT,900-5035521422CT-ND,900-5035521422TR-ND,5035521422-ND,900-5035521422DKR-ND,23-5035521422TR,503552-1422,23-5035521422DKR
Standard Package 7,000
Win Source Part Number 1332872-5035521422
Ultra Librarian 3D Model Ultra Librarian 5035521422 CAD Model

Description

This rectangular connector is an array, edge type, mezzanine (board to board) IC.

  • Positions: 14
  • Pitch: 0.016" (0.40mm)
  • Connector Type: Plug, Outer Shroud Contacts
  • Rows: 2
  • Contact Finish: Gold
  • Mated Stacking Heights: 0.7mm
  • Height Above Board: 0.023" (0.59mm)
  • Package: Reel-TR
  • Temperature Range: -40°C to 85°C (TA)
  • Features: Pick and Place, Solder Retention
  • Applications: Connectors, Interconnects, Rectangular Connector
