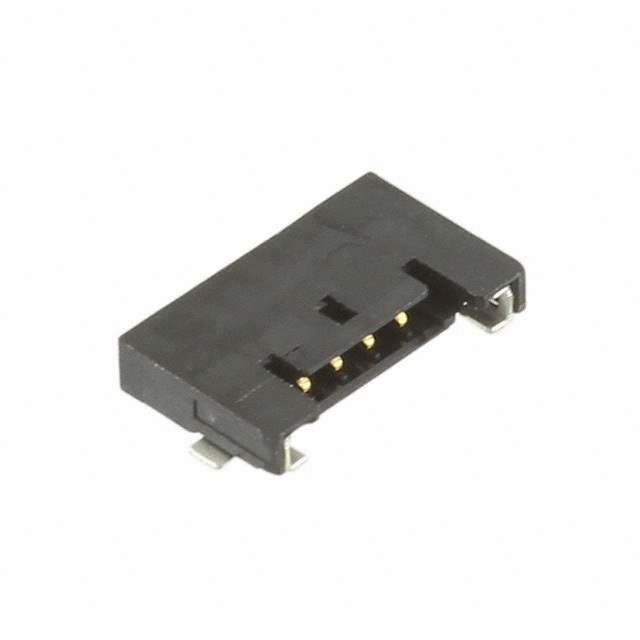

503763-0491 Real Image
Same model may have multiple batches, images only for reference.

503763-0491

Part No 503763-0491
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Shrouded Header (4 Sides) HDR 4 POS 1mm Solder RA Side Entry SMD Pico-Lock™ T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector Type Male Pin
Contact Material Gold, Nickel
Contact Plating Gold
Country of Origin US
Current Rating 1.5 A
Fastening Type Detent
Gender Male
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Height 1.7 mm
Max Operating Temperature 85 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Circuits 4
Number of Contacts 4
Number of Pins 4
Number of Positions 4
Number of Rows 1
Orientation Right Angle
Packaging Cut Tape (CT)
Pitch 1 mm
REACH SVHC Unknown
RoHS Compliant
Schedule B 8536694040
Termination Solder
Voltage 150 V
Voltage Rating 150 V
Win Source Part Number 1161314-503763-0491
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 503763-0491 CAD Model

Description

The 1161314-503763-0491 is a 4-position, 1-row, right angle male pin connector with a pitch of 1 mm.

  • Manufacturer: Molex
  • Contact Material: Gold and nickel with a gold plating
  • Voltage Rating: 150 V
  • Current Rating: 1.5 A
  • Housing Material: Black-colored plastic
  • Height: 1.7 mm
  • RoHS Compliant: Yes
  • Operating Temperature Range: -40°C to 85°C
  • Usage: Widely used in circular connector housings
