Same model may have multiple batches, images only for reference.

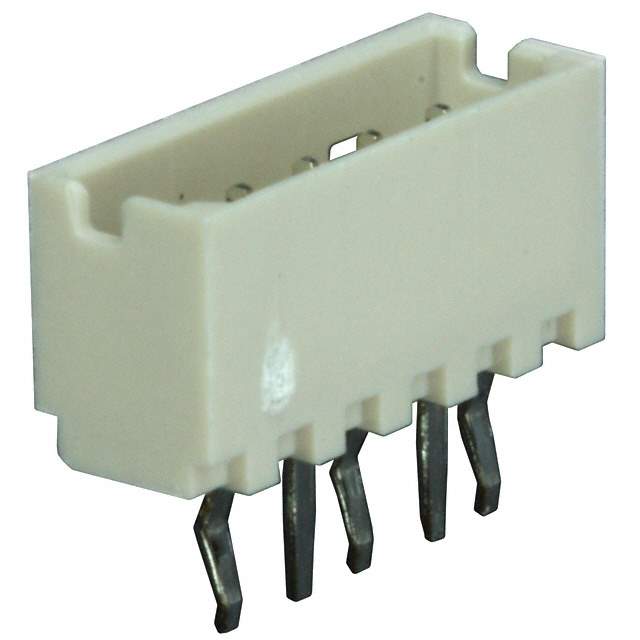

53014-0510 Real Image
Same model may have multiple batches, images only for reference.

53014-0510

Part No 53014-0510
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Shrouded Header (4 Sides) HDR 5 POS 2mm Solder ST Top Entry Thru-Hole MicroBlade™
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Natural
Contact Material Brass
Contact Plating Tin
Contact Resistance 20 mΩ
Country of Origin TW
Current Rating 2 A
Depth 4.35 mm
Flammability Rating UL94 V-0
Gender Male
Glow Wire Compliant Non-compliant
Height 5.85 mm
Housing Color Natural
Housing Material Nylon
Insulation Resistance 1 GΩ
Lead Free Lead Free
Lead Pitch 2 mm
Length 12 mm
Max Operating Temperature 85 °C
Min Operating Temperature -20 °C
Mount Through Hole
Number of Circuits 5
Number of Contacts 5
Number of Positions 5
Number of Rows 1
Orientation Vertical
Pitch 2 mm
Plating Tin
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Termination Solder
Voltage Rating 125 V
Voltage Rating (DC) 125 V
Win Source Part Number 1145813-53014-0510
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 53014-0510 CAD Model

Description

The 53014-0510 is a 5-position circular connector housing from Molex, LLC.

  • Positions: 5
  • Pitch: 2 mm
  • Material: Nylon
  • Mounting Type: Through Hole
  • Gender: Male
  • Voltage Rating: 125 V
  • Current Rating: 2 A
  • Contact Material: Brass
  • Contact Plating: Tin
  • Housing Color: Natural
  • Flammability Rating: UL94 V-0
  • Popularity: Medium
  • Supply and Demand: Limited
