Same model may have multiple batches, images only for reference.

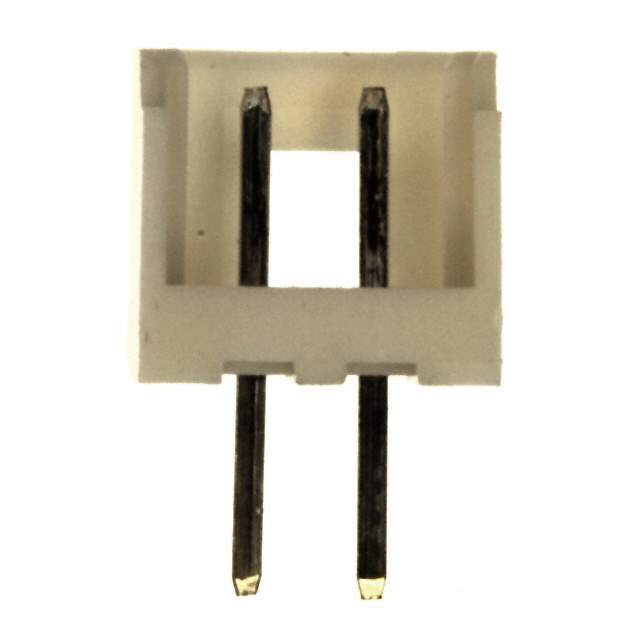

53253-0270 Real Image
Same model may have multiple batches, images only for reference.

53253-0270

Part No 53253-0270
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description 2.00mm Pitch Micro-Latch Wire-to-Board Header Vertical Square Pin Three-sided Shroud 2 Circuits
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Natural
Connector Type Header
Contact Material Brass
Contact Plating Tin
Contact Resistance 20 mΩ
Country of Origin VN
Current Rating 1 A
Flammability Rating UL94 V-0
Gender Male
Glow Wire Compliant Non-compliant
Housing Color Natural
Housing Material Nylon
Lead Free Yes
Lead Pitch 2 mm
Maximum Operating Temperature 105 °C
Max Voltage Rating (DC) 125.125 kV
Min Operating Temperature -40 °C
Mount Through Hole
Number of Circuits 2
Number of Contacts 2
Number of Positions 2
Number of Rows 1
Orientation Vertical, Right Angle
Pitch 2 mm
Plating Tin
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Termination Solder
Voltage Rating 125 V
Voltage Rating (DC) 125 V
Win Source Part Number 969106-53253-0270
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 53253-0270 CAD Model

Description

The 969106-53253-0270 is a header connector designed for through hole mounting.

  • Mounting: Through hole
  • Positions: 2
  • Pitch: 2 mm
  • Connector Type: Male
  • Termination: Solder
  • Voltage Rating: 125 V
  • Current Rating: 1 A
  • Housing Material: Nylon
  • Contact Material: Brass
  • Circuits: 2
  • Orientation: Vertical, right angle
  • Contact Plating: Tin
  • Manufacturer: Molex
  • RoHS Compliant: Yes
