Same model may have multiple batches, images only for reference.

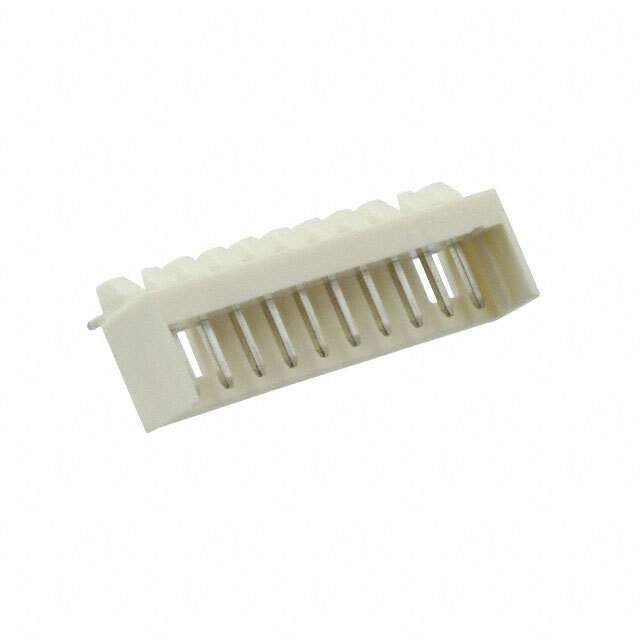

53254-1070 Real Image
Same model may have multiple batches, images only for reference.

53254-1070

Part No 53254-1070
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Shrouded Header (3 Sides) HDR 10 POS 2mm Solder RA Side Entry Thru-Hole Micro-Latch™ Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Gender Male
Contact Material Brass
Contact Plating Tin
Country of Origin MY
Current Rating 2 A
Gender Male
Glow Wire Compliant Non-compliant
Housing Material Nylon
Maximum Operating Temperature 105 °C
Min Operating Temperature -40 °C
Mount Through Hole
Number of Circuits 10
Number of Contacts 10
Number of Positions 10
Number of Rows 1
Orientation Right Angle
Pitch 2 mm
Plating Tin
REACH SVHC Unknown
RoHS Compliant
Termination Through Hole
Voltage Rating 125 V
Win Source Part Number 990786-53254-1070
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 53254-1070 CAD Model

Description

This is a 10-position, 2 mm pitch, right-angle male connector manufactured by Molex, LLC.

  • Positions: 10
  • Pitch: 2 mm
  • Orientation: Right-Angle
  • Connector Type: Male
  • Termination: Through-Hole
  • Material: Nylon
  • Plating: Tin
  • Current Rating: 2 A
  • Maximum Operating Temperature: 105 °C
  • Voltage Rating: 125 V
  • Minimum Operating Temperature: -40 °C
  • RoHS Compliant: Yes
  • Mounting: Through-Hole
