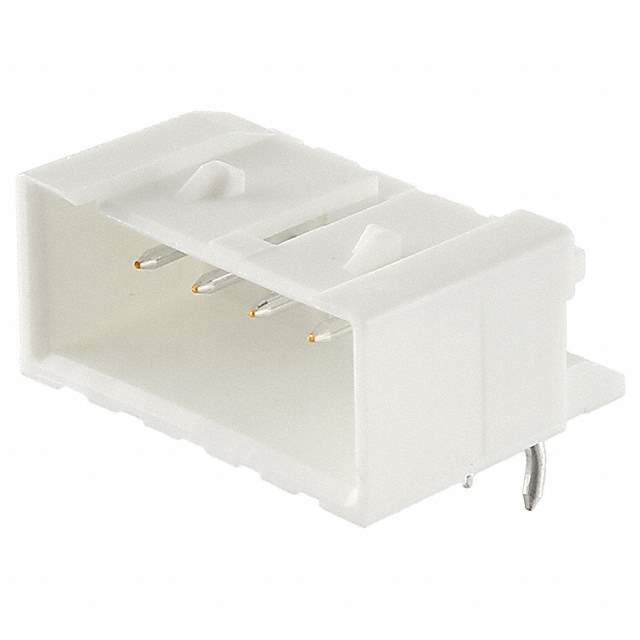

53426-0510 Real Image
Same model may have multiple batches, images only for reference.

53426-0510

Part No 53426-0510
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Shrouded Header (4 Sides) HDR 5 POS 2.5mm Solder RA Thru-Hole Mini-Lock™ Frame
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color White
Connector Type Male Pin
Contact Material Bronze, Copper, Tin
Contact Mating Length 3.9878 mm
Contact Plating Tin
Contact Resistance 20 mΩ
Country of Origin JP
Current Rating 3 A
Depth 11.5 mm
Fastening Type Ramp
Gender Male
Height 6.9 mm
Housing Color White
Housing Material Polybutylene
Length 14.9 mm
Max Operating Temperature 105 °C
Min Operating Temperature -40 °C
Mount Through Hole
Number of Circuits 4
Number of Contacts 5
Number of Positions 5
Number of Rows 1
Orientation Right Angle
Pitch 2.5 mm
Plating Tin
Radiation Hardening No
RoHS Compliant
Termination Solder
Voltage Rating 250 V
Win Source Part Number 1214291-53426-0510
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 53426-0510 CAD Model

Description

The Molex male pin connector is a 5-position connector that has a pitch of 2.5 mm.

  • Positions: 5
  • Pitch: 2.5 mm
  • Color: White
  • Termination: Solder
  • Fastening Type: Ramp
  • Contact Mating Length: 3.9878 mm
  • Contact Material: Bronze, Copper, Tin
  • Voltage Rating: 250 V
  • Current Rating: 3 A
  • Gender: Male
  • Length: 14.9 mm
  • Housing Material: Polybutylene
  • Circuits: 4
  • Orientation: Right Angle
  • Contact Plating: Tin
  • Housing Color: White
  • Contact Resistance: 20 mΩ
  • Height: 6.9 mm
  • Mounting: Through Hole
  • RoHS Compliant: Yes
  • ECCN: EAR99
  • Manufacturer: Molex
  • Market Popularity: Popular
