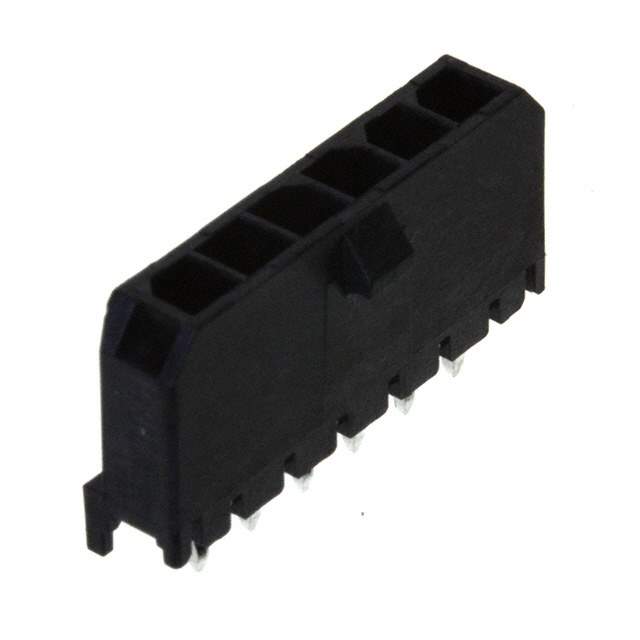

Same model may have multiple batches, images only for reference.

43650-0615

Name: 43650-0615
Brand: Molex, LLC
SKU: 1214294
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	43650-0615
Manufacturer	Molex, LLC
Catalog	Circular Connectors - Housings
Description	PCB Header Temperature range: max. 105 °C Housing Material: Thermoplastic Poles: 6 Rated current: 5 A
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Color	Black
Contact Gender	Male
Contact Material	Brass
Contact Plating	Tin
Contact Resistance	30 mΩ
Country of Origin	US
Current Rating	5 A
Depth	5.57 mm
Flammability Rating	UL94 V-0
Gender	Male
Glow Wire Compliant	Compliant
Halogen Free	Low Halogen
Height	9.9 mm
Housing Color	Black
Housing Material	Thermoplastic
Lead Free	Lead Free
Lead Pitch	3 mm
Length	21.65 mm
Max Current Rating	5 A
Max Operating Temperature	105 °C
Max Voltage Rating (DC)	250.25 kV
Min Operating Temperature	-40 °C
Mount	Through Hole
Number of Circuits	6
Number of Contacts	6
Number of Positions	6
Number of Rows	1
Orientation	Vertical, Right Angle
Pitch	3 mm
Plating	Tin
Radiation Hardening	No
REACH SVHC	Unknown
RoHS	Compliant
Schedule B	8536694040, 8536694040
Termination	Solder
Voltage Rating	600 V
Voltage Rating (DC)	250 V
Win Source Part Number	1214294-43650-0615
Categories	Circular Connectors - Housings
Manufacturer	Molex, LLC
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 43650-0615 CAD Model

Alternative Products

Description

This circular connector housing is made by Molex and has a part number of 1214294-43650-0615.

Positions: 6
Pitch: 3mm
Housing Color: Black
Rows: 1
Termination: Solder
Contact Material: Brass
Voltage Rating: 600V
Current Rating: 5A
Contact Resistance: 30 mΩ
Contact Plating: Tin
Housing Material: High-Quality Thermoplastic
Application: Automotive, consumer electronics, and industrial equipment
