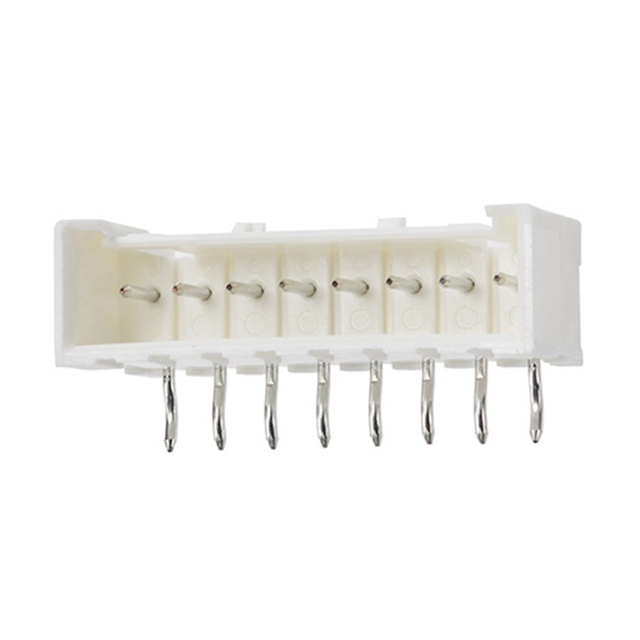

0534261010 Real Image
Same model may have multiple batches, images only for reference.

0534261010

Part No 0534261010
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 10POS 2.5MM / Connector Header Through Hole, Right Angle 10 position 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 10
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole, Right Angle
Termination Kinked Pin, Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.157" (4.00mm)
Contact Length - Post 0.134" (3.40mm)
Insulation Height 0.264" (6.70mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polybutylene Terephthalate (PBTP), Glass Filled
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color White
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 250V
Applications General Purpose, Industrial
Base Product Number 053426
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number WM20351,053426-1010,53426-1010,534261010,0534261010-ND
Standard Package 450
Win Source Part Number 1332885-0534261010
Ultra Librarian 3D Model Ultra Librarian 0534261010 CAD Model

Description

The Molex 1332885-0534261010 is a 10-position header connector with a pitch of 0.098" (2.50mm) and a current rating that varies by wire gauge.

  • Positions: 10
  • Pitch: 0.098" (2.50mm)
  • Current Rating: Varies by Wire Gauge
  • Contact Type: Male Pin
  • Termination: Kinked Pin and Solder
  • Contact Material: Phosphor Bronze
  • Contact Finish: Tin
  • Insulation Material: Polybutylene Terephthalate (PBTP), Glass Filled
  • Mounting Type: Through Hole, Right Angle
  • Fastening Type: Locking Ramp
  • RoHS3 Compliant: Yes
  • Temperature Range: -40°C to 105°C
  • Application: Board to Cable/Wire
