Same model may have multiple batches, images only for reference.

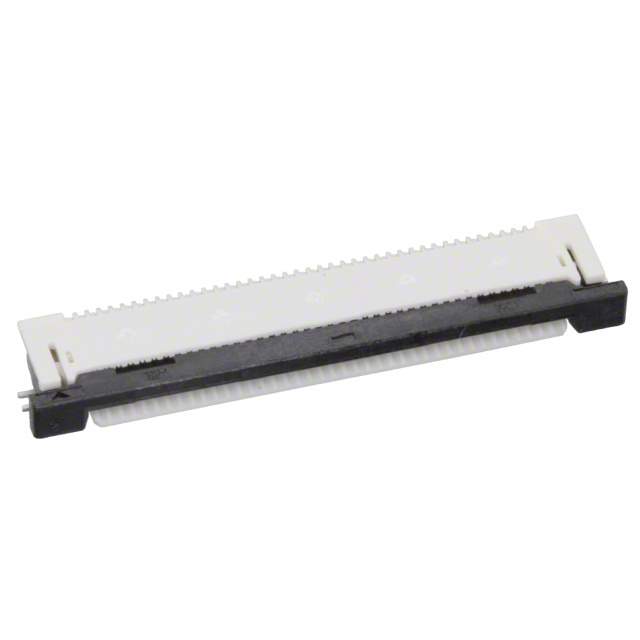

54132-4033 Real Image
Same model may have multiple batches, images only for reference.

54132-4033

Part No 54132-4033
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description Conn FFC/FPC Connector SKT 40 POS 0.5mm Solder RA SMD Embossed T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Location Bottom
Contact Material Bronze
Contact Plating Silver, Tin
Country of Origin MY
Current Rating 500 mA
Depth 7.15 mm
Gender Receptacle
Housing Color Natural
Housing Material Nylon
Length 25.5 mm
Maximum Operating Temperature 85 °C
Min Operating Temperature -20 °C
Mount Surface Mount
Number of Circuits 40
Number of Contacts 40
Number of Pins 40
Number of Positions 40
Number of Rows 1
Orientation Right Angle
Packaging Tape & Reel
Pitch 500 µm
REACH SVHC Unknown
RoHS Compliant
Stackable No
Termination Solder
Voltage Rating 50 V
Win Source Part Number 1039199-54132-4033
Categories FFC,FPC(FlatFlexible)Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 54132-4033 CAD Model

Description

The Molex 1039199-54132-4033 is a 40-position receptacle connector used in FFC and FPC connectors.

  • Positions: 40
  • Connector Type: Receptacle
  • Application: FFC and FPC connectors
  • Pitch: 500 micrometers
  • Current Rating: 500 mA
  • Contact Material: Bronze
  • Voltage Rating: 50V
  • Length: 25.5 mm
  • Housing Material: Nylon
  • Win Source Part Number: 1039199
  • RoHS Compliant: Yes
  • Minimum Operating Temperature: -20 degrees Celsius
  • Maximum Operating Temperature: 85 degrees Celsius
