Same model may have multiple batches, images only for reference.

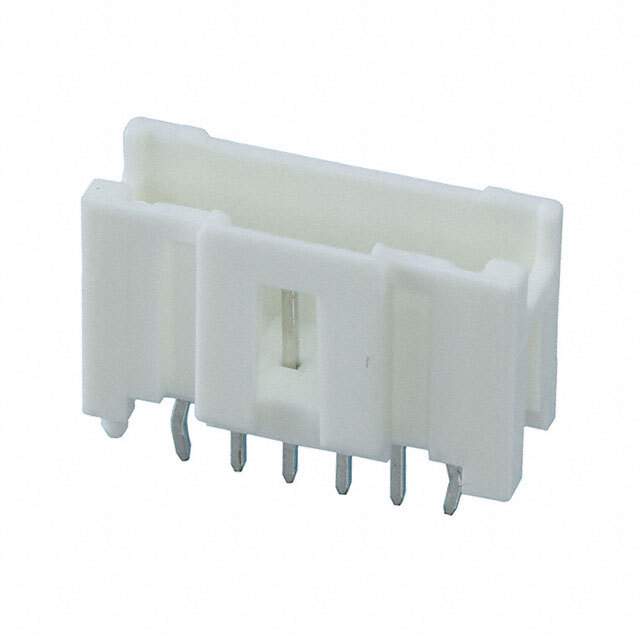

559320610 Real Image
Same model may have multiple batches, images only for reference.

559320610

Part No 559320610
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description 2.0 WTB PLG HSG ASSY STR 6CKT
Datasheet
559320610 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Series MicroClasp 55932
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 6
Number of Positions Loaded All
Number of Rows 1
Mounting Style Through Hole
Termination Kinked Pin, Solder
Fastening Type Latch Holder
Contact Length - Mating 0.144" (3.66mm)
Contact Length - Post 0.126" (3.20mm)
Overall Contact Length 0.360" (9.15mm)
Insulation Height 0.384" (9.75mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polybutylene Terephthalate (PBT)
Features Board Guide
Insulation Color Natural
Mated Stacking Heights 13.2mm
Applications General Purpose, Industrial, Medical
Win Source Part Number 764046-559320610
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 559320610 CAD Model

Description

{"ProductId":702424,"FormattedDescription":"

This electronic component is a connector from Molex, LLC.

  • Win Source Part Number: 764046-559320610
  • Series: MicroClasp 55932
  • Packaging: Tray
  • Positions: 6
  • Mounting: Through-hole
  • Features: Board Guides
  • Connector Type: Header
  • Contact Type: Male Pin
  • Positions Loaded: All
  • Rows: 1
  • Termination: Kinked Pin, Solder
  • Fastening Type: Latch Holder
  • Mated Stacking Heights: 13.2mm
  • Applications: General Purpose, Industrial, Medical
  • Insulation Material: Polybutylene Terephthalate (PBT)
  • Style: Board to Cable/Wire
  • Pitch-Mating: 0.079" (2.00mm)
  • Contact Finish-Mating and Post: Tin
  • Insulation Color: Natural
  • Shrouding: Shrouded - 4 Wall
  • Contact Length-Post: 0.126" (3.20mm)
  • Overall Contact Length: 0.360" (9.15mm)
  • Insulation Height: 0.384" (9.75mm)
  • Contact Shape: Square
  • Contact Length-Mating: 0.144" (3.66mm)
  • Supply and Demand Status: Limited
"}
