Same model may have multiple batches, images only for reference.

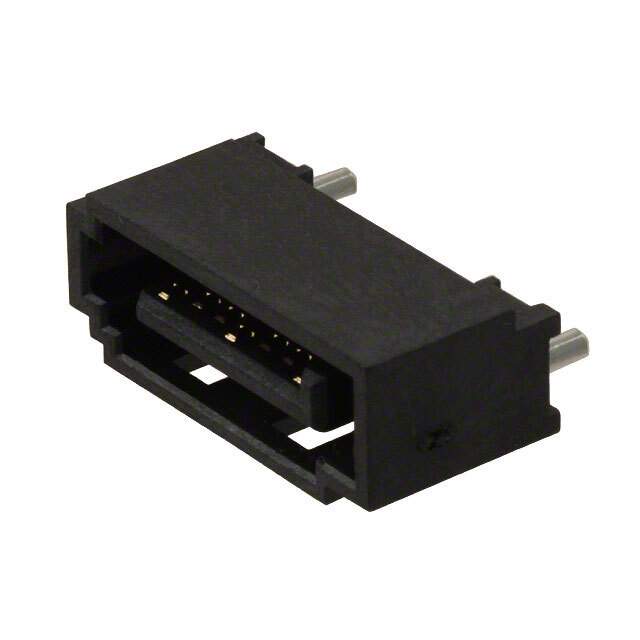

67800-5025 Real Image
Same model may have multiple batches, images only for reference.

67800-5025

Part No 67800-5025
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn SATA PL 7 POS 1.27mm Solder ST SMD 7 Terminal 1 Port Frame
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector Type SATA
Contact Material Brass
Contact Plating Gold
Country of Origin HK
Current Rating 1.5 A
Flammability Rating UL94 V-0
Gender Male
Glow Wire Compliant Non-compliant
Housing Material Thermoplastic
Lead Pitch 1.27 mm
Maximum Operating Temperature 85 °C
Max Voltage Rating (AC) 15 V
Min Operating Temperature -35 °C
Mount Surface Mount
Number of Circuits 7
Number of Contacts 7
Number of Positions 7
Number of Rows 1
Orientation Vertical
Pitch 1.27 mm
Plating Tin
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Termination SMD/SMT
Voltage Rating 15 V
Voltage Rating (DC) 15 V
Win Source Part Number 1003645-67800-5025
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 67800-5025 CAD Model

Description

Molex, LLC's 893900 is a black SATA connector with 7 positions and a pitch of 1.27mm.

  • Gender: Male
  • Orientation: Vertical
  • Housing Material: Thermoplastic
  • Contact Material: Brass
  • RoHS compliant: Yes
  • Flammability Rating: UL94 V-0
  • Win Source part number: 1003645-67800-5025
