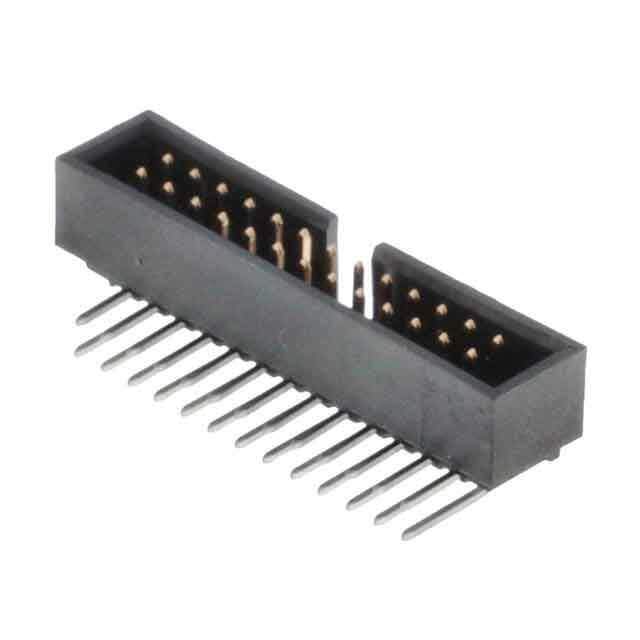

70247-2651 Real Image
Same model may have multiple batches, images only for reference.

70247-2651

Part No 70247-2651
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER 26POS .100 R/A 15AU
Datasheet
70247-2651 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex Connector Corporation
Series C-Grid 70247
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Number of Positions 26
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.120" (3.05mm)
Insulation Height 0.350" (8.89mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15μin (0.38μm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Keying Slot
Material Flammability Rating UL94 V-0
Insulation Color Black
Contact Finish Thickness - Post 74.8μin (1.90μm)
Applications Automotive, General Purpose, Lighting, Medical, Telecommunications
Win Source Part Number 764633-70247-2651
Family Name 70247
Introduction Date May 24, 2010
ECCN EAR99
Country of Origin Ireland, Malaysia, Mexico, Singapore, Slovakia (Slovak Republic)
Halogen Free Not Compliant
Estimated EOL Date 2026
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 70247-2651 CAD Model

Description

The supply and demand status is limited. This product is part of the C-Grid 70247 series and is packaged in a tray. It has 26 positions, a keying slot, and is a male pin connector type.

  • Series: C-Grid 70247
  • Packaging: Tray
  • Positions: 26
  • Keying Slot: Yes
  • Connector Type: Male Pin
  • Contact Material: Phosphor Bronze
  • Material Flammability Rating: UL94 V-0
  • Applications: Automotive, General Purpose, Lighting, Medical, Telecommunications
  • Mounting: Through Hole or Right Angle
  • Insulation Material: Polybutylene Terephthalate (PBT) and Glass Filled
  • Contact Finish-Mating: Gold
  • Contact Finish-Post: Tin
  • Insulation Color: Black
  • Row Spacing-Mating: 0.100 inches (2.54mm)
  • Supply and Demand Status: Limited
