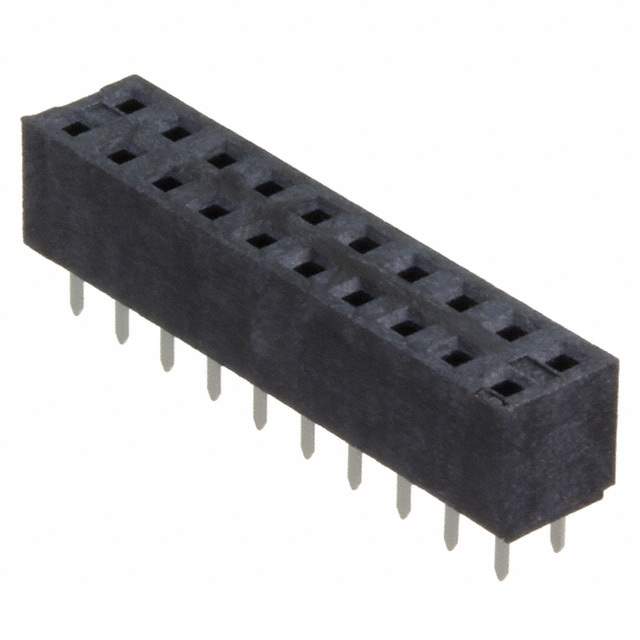

The Molex 79107-7009 is a SlimStack™ Board-to-Board Connector. It's a compact and reliable connector designed for use in applications where space is limited and a secure connection is required between two printed circuit boards (PCBs).

Applications:

• Smartphones
• Tablets
• Laptops
• Digital Cameras
• Wearable Devices
• Medical Devices
• Industrial Control Equipment
• Automotive Electronics
• GPS Devices

Features:

• SlimStack™ Design: Offers a low profile and narrow width for space-saving applications.
• Board-to-Board Connection: Connects two PCBs directly, eliminating the need for cables.
• Fine Pitch: Provides a high density of contacts in a small area.
• Secure Locking Mechanism: Ensures a reliable and stable connection.
• Surface Mount Technology (SMT): Designed for automated assembly processes.
• High Temperature Resistant: Suitable for reflow soldering processes.

Benefits:

• Space Savings: The SlimStack™ design minimizes the footprint on the PCB.
• Reliable Connection: The secure locking mechanism prevents accidental disconnection.
• High Density: The fine pitch allows for a large number of signals to be transmitted in a small area.
• Easy Assembly: SMT compatibility enables efficient and cost-effective manufacturing.
• Durable Performance: Designed to withstand harsh environments and maintain stable connections.

Specifications:

The Molex 79107-7009 SlimStack connector typically has a pitch of 0.4mm. It's made of high-temperature thermoplastic that can withstand reflow soldering temperatures. The housing is typically black in color. The contact material is typically gold-plated to ensure good conductivity and corrosion resistance. The connector is designed for a voltage rating of typically 50V and a current rating of typically 0.3A per contact. It is RoHS compliant.
