Same model may have multiple batches, images only for reference.

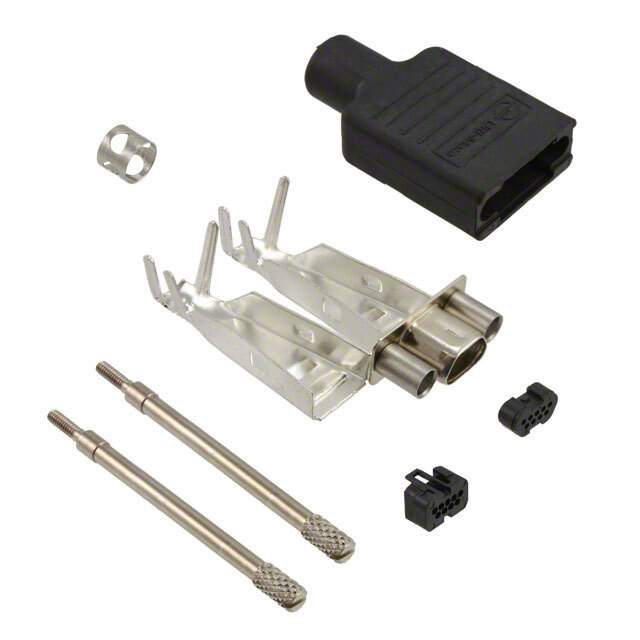

834219014 Real Image
Same model may have multiple batches, images only for reference.

834219014

Part No 834219014
Manufacturer Molex, LLC
Catalog D - Sub, D - Shaped Connectors - Housings
Description CMD RECPT KIT 9CIR UNASSEMBLED
Datasheet
834219014 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Series Commercial Micro-D Series 83421
Packaging Bulk
Connector Style D-Type, Micro-D
Connector Type Receptacle for Female Contacts
Number of Positions 9
Number of Rows 2
Shell Size, Connector Layout 0.050 Pitch x 0.050 Row to Row
Contact Type Signal
Mounting Free Hanging (In-Line)
Flange Feature Cable Side, Male Jackscrew (2-56)
Features Assembly Kit, Shielded
Shell Material, Finish Steel, Nickel Plated
Operating Temperature Range -40°C ~ 125°C
Mating Cycles 500
Dielectric Material Liquid Crystal Polymer (LCP)
Note Contacts Not Included
Win Source Part Number 766307-834219014
Popularity Medium
Supply and Demand Status Limited
Family Name 83421
Introduction Date July 01, 2010
ECCN EAR99
Country of Origin China, United States of America
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 834219014 CAD Model

Description

The 834219014 is a commercial micro-D series connector from Molex, LLC.

  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Type: Receptacle for Female Contacts
  • Applications: Power Supplies, Motor Controls, Audio Amplifiers
  • Features: Assembly Kit, Shielded
  • Operating Temperature Range: -40°C to 125°C
