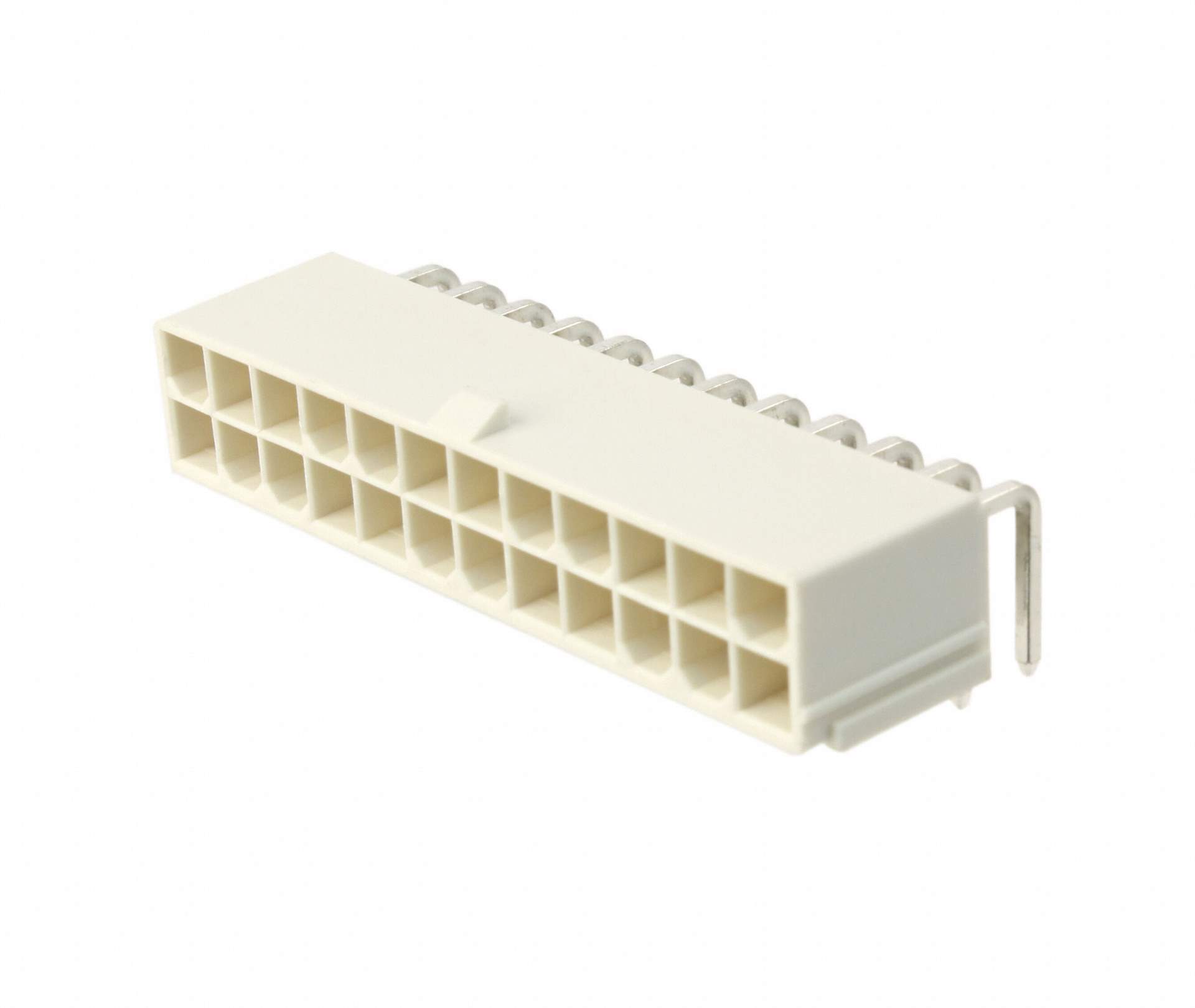

87427-2402 Real Image
Same model may have multiple batches, images only for reference.

87427-2402

Part No 87427-2402
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Power HDR 24 POS 4.2mm Solder RA Thru-Hole 24 Terminal 1 Port Mini-Fit Jr™ Frame
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Gender Male
Contact Material Brass
Contact Plating Tin
Country of Origin US
Current Rating 6 A
Glow Wire Compliant Non-compliant
Housing Material Nylon
Maximum Operating Temperature 105 °C
Min Operating Temperature -40 °C
Mount Through Hole
Number of Circuits 24
Number of Contacts 24
Number of Positions 24
Number of Rows 2
Orientation Right Angle, Vertical
Pitch 4.2 mm
Plating Tin
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Row Spacing 4.2 mm
Termination Solder
Voltage Rating 600 V
Win Source Part Number 1030957-87427-2402
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 87427-2402 CAD Model

Description

The 1030957-87427-2402 is a circular connector housing that is designed to provide a reliable and secure connection for your electronic components and is manufactured by Molex.

  • Positions: 24
  • Pitch: 4.2 mm
  • Mounting: Through-hole
  • Current Rating: 6 A
  • Voltage Rating: 600 V
  • Minimum Operating Temperature: -40 °C
  • Maximum Operating Temperature: 105 °C
  • Contact Material: Brass
  • Housing Material: Nylon
  • Contact Plating: Tin
