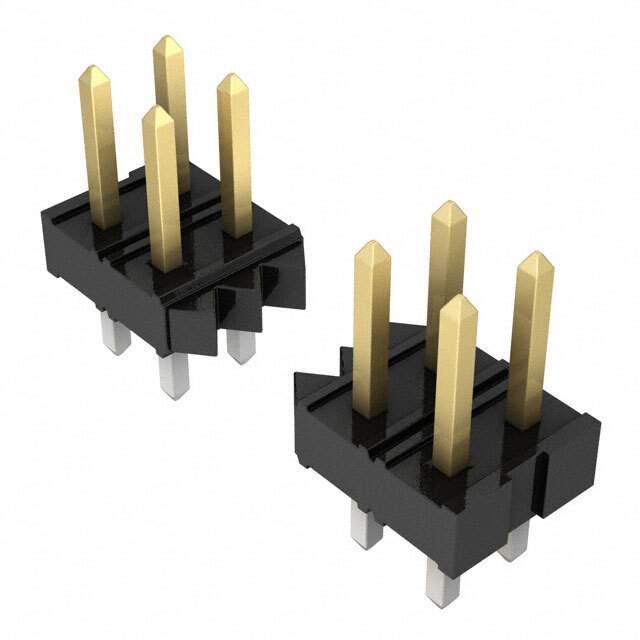

0877581816 Real Image
Same model may have multiple batches, images only for reference.

0877581816

Part No 0877581816
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 18POS 2MM / Connector Header Through Hole 18 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Tray
Connector Type Header, Breakaway
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 18
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.157" (4.00mm)
Contact Length - Post 0.102" (2.60mm)
Overall Contact Length 0.319" (8.10mm)
Insulation Height 0.059" (1.50mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA46), Nylon 4/6, Glass Filled
Material Flammability Rating UL94 V-0
Insulation Color Black
Applications Automotive, General Purpose, Telecommunications
Base Product Number 87758
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 87758-1816-C,087758-1816-C,WM18840,87758-1816-CL100,WM18545,877581816-C,0877581816-C,877581816,WM18840-NDR,WM18545-ND,87758-1816,087758-1816
Standard Package 1
Win Source Part Number 1332457-0877581816
Ultra Librarian 3D Model Ultra Librarian 0877581816 CAD Model

Description

The 87758 series male header connector is a two-row, 18-position connector with a pitch of 2.0mm.

  • Series: 87758
  • Type: Male Header Connector
  • Rows: Two
  • Positions: 18
  • Pitch: 2.0mm
  • Contact Material: Phosphor Bronze
  • Contact Plating Mating: Gold
  • Contact Plating Post: Tin
  • Current Rating: Amps
  • Applications: Automotive, General Purpose, and Telecommunications
  • Mounting Style: Through-Hole
  • Insulation Color: Black
  • Contact Length: 4.00mm
  • Overall Contact Length: 8.10mm
