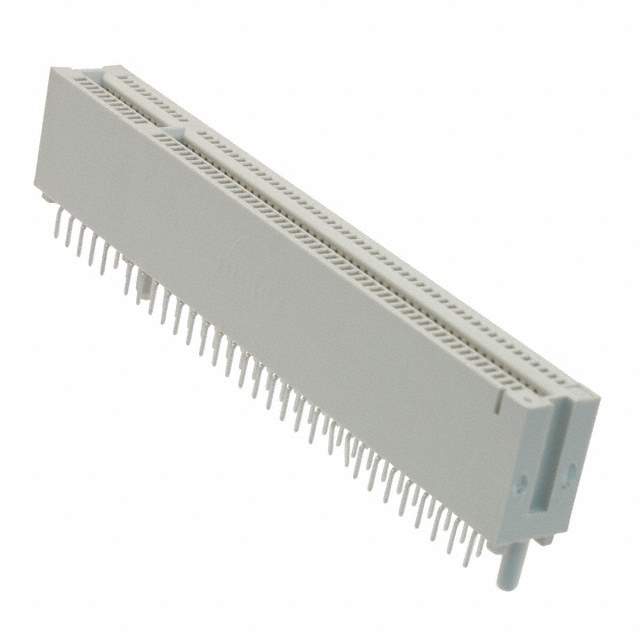

891776030 Real Image
Same model may have multiple batches, images only for reference.

891776030

Part No 891776030
Manufacturer Molex, LLC
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FMALE 120POS .050
Datasheet
891776030 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Series 89177
Packaging Bulk
Part Status Obsolete(EOL)
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions 120
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.050" (1.27mm)
Features Board Guide
Mounting Style Through Hole
Termination Solder
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness Flash
Color Brown
Material - Insulation Polyphenylene Sulfide (PPS)
Read Out Dual
Win Source Part Number 766380-891776030
Popularity Medium
Supply and Demand Status Limited
Family Name 89177
Introduction Date January 30, 2002
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian 891776030 CAD Model

Description

The Molex 89177 connector is a female gender connector that is perfect for use in electronic devices.

  • Positions: 120
  • Pitch: 0.050" (1.27mm)
  • Features: Board Guide
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Contact Material: Phosphor Bronze
  • Insulation Material: Polyphenylene Sulfide (PPS)
  • Read Out: Dual
  • Status: Obsolete (EOL)
  • Popularity: Medium
  • Supply and Demand Status: Limited
