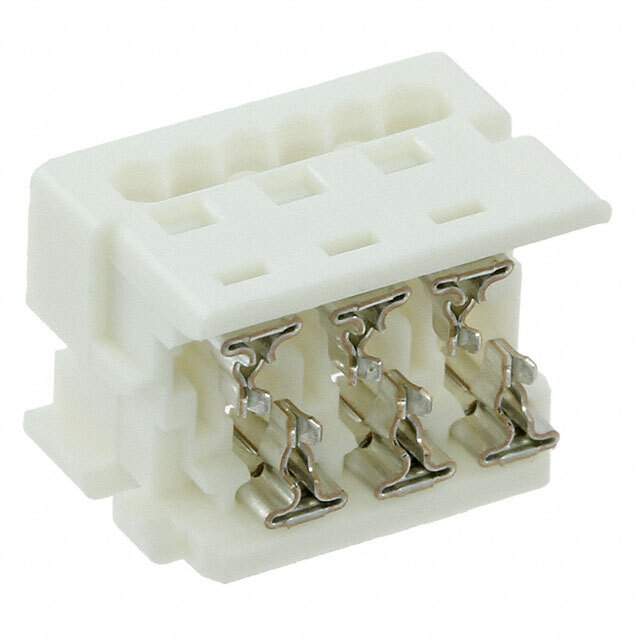

90327-0306 Real Image
Same model may have multiple batches, images only for reference.

90327-0306

Part No 90327-0306
Manufacturer Molex, LLC
Catalog OEM Parts (0 - 9)
Description 6 Position Rectangular Housing Connector Receptacle Black 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package 0306
Color White
Contact Current Rating 1.2 A
Contact Gender Male
Contact Material Bronze, Tin
Contact Plating Tin
Contact Resistance 10 mΩ
Country of Origin MY
Current Rating 1.2 A
Depth 7 mm
Flammability Rating UL94 V-0
Gender Female
Glow Wire Compliant Non-compliant
Housing Color White
Housing Material Polyester
Lead Free Yes
Lead Pitch 1.27 mm
Length 10.13 mm
Material Polyester
Maximum Operating Temperature 105 °C
Min Operating Temperature -40 °C
Mount Cable
Number of Circuits 6
Number of Contacts 6
Number of Pins 6
Number of Poles 6
Number of Positions 6
Number of Rows 2
Orientation Right Angle
Pitch 2.54 mm
Plating Tin
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Termination IDT
Voltage Rating 250 V
Voltage Rating (AC) 250 V
Width 6.35 mm
Wire/Cable Gauge 26 AWG
Win Source Part Number 1041578-90327-0306
Categories OEM Parts(0-9)
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 90327-0306 CAD Model

Description

The Molex 1041578-90327-0306 is a 6-position, 2.54 mm pitch, right-angle female connector with an IDT termination.

  • Positions: 6
  • Pitch: 2.54 mm
  • Orientation: Right-Angle
  • Type: Female
  • Termination: IDT
  • Contact Material: Bronze, Tin
  • Voltage Rating: 250 V
  • Current Rating: 1.2 A
  • Contact Resistance: 10 mΩ
  • Housing Material: Polyester
  • Housing Color: White
  • Contact Plating: Tin
  • Mounting: SMD (SMT)
  • Width: 6.35 mm
  • Length: 10.13 mm
  • Lead-Free: Yes
  • RoHS Compliant: Yes
  • Maximum Operating Temperature: 105 °C
  • Minimum Operating Temperature: -40 °C
  • Alternative Parts: 926209-3, 71600-106LF, 71600-006LF, 89361-706LF, 215307-3, 22-55-2061, M20-78303460.903270306, 0903270306, 90327/0306, and 903270306
