Same model may have multiple batches, images only for reference.

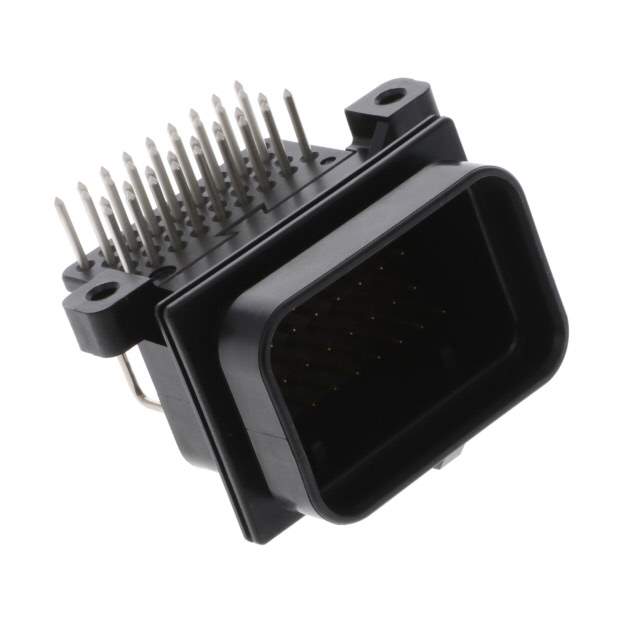

6437288-2 Real Image
Same model may have multiple batches, images only for reference.

6437288-2

Part No 6437288-2
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 34POS 3MM / Connector Header Through Hole, Right Angle 34 position 0.118" (3.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Superseal
Package Tube
Connector Type Receptacle
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Number of Positions 34
Number of Rows 4
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.157" (4.00mm)
Insulation Height 1.079" (27.40mm)
Contact Shape Circular
Contact Finish - Mating Gold
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyester
Features Mounting Flange, Sealed
Temperature Range - Operating -40°C ~ 125°C
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 250V
Applications Automotive
Base Product Number 6437288
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names A142477,-6437288-2-LSI,6437288-2-ND,-6437288-2-CSI,2266-6437288-2
Standard Package 14
Win Source Part Number 1021257-6437288-2
Ultra Librarian 3D Model Ultra Librarian 6437288-2 CAD Model

Description

The TE Connectivity AMP Connectors 1021257-6437288-2 is a Superseal series male pin header connector designed for automotive applications.

  • Series: Superseal
  • Positions: 34
  • Connector Type: Receptacle
  • Mounting Features: Mounting Flange
  • Sealed: Yes
  • Positions Loaded: All
  • Rows: Four
  • Termination Method: Solder
  • Fastening Type: Locking Ramp
  • Contact Material: Brass
  • Voltage Rating: 250V
  • Shrouded: Four Walls
  • Pitch-Mating: 0.118" (3.00mm)
  • Contact Finish-Mating: Gold
  • Contact Finish-Post: Tin
  • Temperature Range: -40°C to 125°C
  • Mounting: Through-Hole, Right Angle
  • Contact Length-Post: 0.157" (4.00mm)
  • Insulation Height: 1.079" (27.40mm)
  • Temperature Range Operating: -40°C to 125°C
