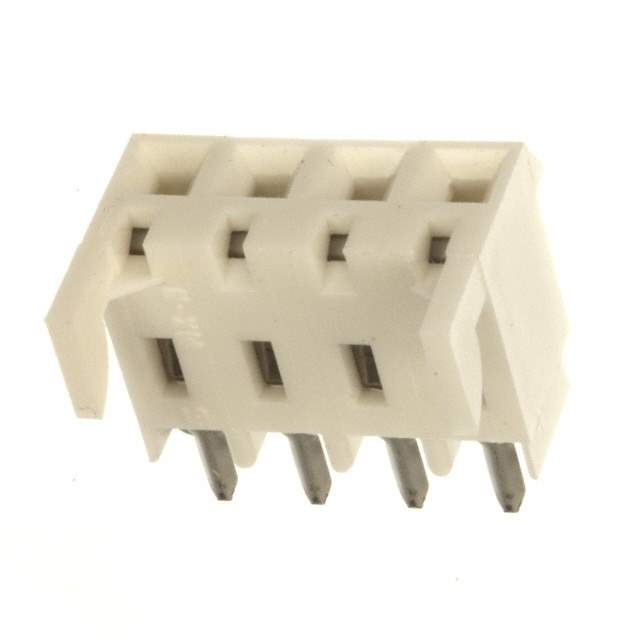

Part No 9483046
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Molex
Series KK396, 41815
Package Tray
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 4
Number of Positions Loaded All
Pitch - Mating 0.156" (3.96mm)
Number of Rows 1
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Insulation Color Natural
Insulation Height 0.449" (11.40mm)
Contact Length - Post 0.120" (3.05mm)
Temperature Range - Operating -40°C ~ 80°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Features Board Hooks
Current Rating (Amps) 4.5A
Voltage Rating 600V
Applications Automotive, General Purpose, Medical, Telecommunications
Insulation Material Polyester
Contact Shape Square
Contact Material Brass
Contact Finish Thickness - Post 100.0µin (2.54µm)
Base Product Number 000948
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1315082-9483046
Ultra Librarian 3D Model Ultra Librarian 9483046 CAD Model

Description

The 1315082-9483046 from Molex is a 4-position female socket rectangular connector.

  • Series: KK396, 41815
  • Feature: board hooks
  • Connector Type: receptacle
  • Applications: general-purpose, automotive, medical, and telecommunications
  • Pitch Mating: 0.156” (3.96mm)
  • Contact Finish Mating: gold with a thickness of 15.0µin (0.38µm)
  • Contact Finish Post: tin-plated with a thickness of 100.0µin (2.54µm)
  • Termination: solder
  • Fastening Type: locking ramp
  • Insulation Material: polyester
  • Insulation Color: natural
  • ECCN: EAR99
  • REACH: unaffected
