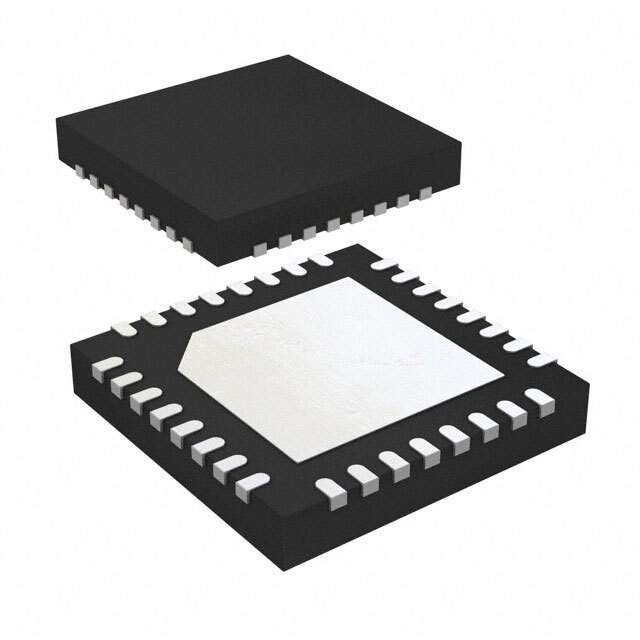

MP2030DU-LF-Z Real Image
Same model may have multiple batches, images only for reference.

MP2030DU-LF-Z

Part No MP2030DU-LF-Z
Manufacturer Monolithic Power Systems Inc.
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO ADJ 3A / 3A Dual Supply Very Low Dropout Linear Regulator
Datasheet
MP2030DU-LF-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Monolithic Power Systems Inc.
Packaging Reel package
Output Configuration Positive
Output Type Adjustable
Number of Regulators 1
Voltage Input MAX 5.5V
Output Voltage 0.9V
Output Voltage MAX 3.6V
Voltage Dropout (Maximum) 0.15V @ 3A (Typ)
Output Current 3A
Operating Supply Current 220μA
PSRR 32dB (100kHz)
Control Features Enable, Power Good
Protection Features Over Current, Over Temperature, Soft Start
Operating Temperature Range -40°C ~ 125°C
Mounting SMD
Package 32-VFQFN Exposed Pad
Manufacturer Package 32-QFN (5x5)
Win Source Part Number 789113-MP2030DU-LF-Z
Popularity Medium
Supply and Demand Status Limited
Family Name MP2030
Introduction Date April 06, 2010
ECCN EAR99
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian MP2030DU-LF-Z CAD Model

Description

The MP2030DU-LF-Z, manufactured by Monolithic Power Systems Inc., is an adjustable output voltage regulator.

  • Output Configuration: Positive
  • Output Voltage MAX: 3.6V
  • Voltage Input MAX: 5.5V
  • Dropout Voltage: 0.15V @ 3A
  • PSRR: 32dB (100kHz)
  • Protection: Over current, over temperature, and soft start
  • Package: 32-VFQFN exposed pad
  • Mounting: SMD
  • Temperature Range: -40°C to 125°C
  • Operating Supply Current: 220μA
  • Family: MP2030
  • Introduction Date: April 06, 2010
  • Country of Origin: China
  • Estimated EOL Date: 2027
