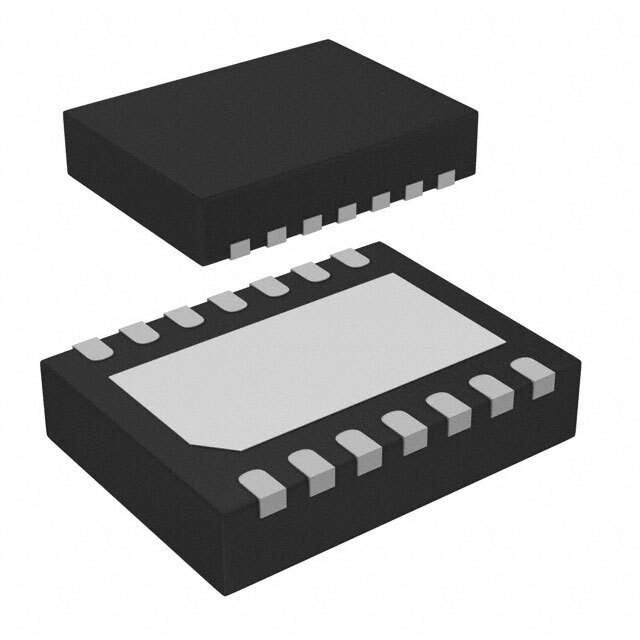

MP2209DL-LF-Z

Name: MP2209DL-LF-Z
Brand: Monolithic Power Systems Inc.
SKU: 238757
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	MP2209DL-LF-Z
Manufacturer	Monolithic Power Systems Inc.
Catalog	PMIC - Voltage Regulators - DC DC Switching Regulators
Description	IC REG BUCK ADJ 2A SYNC
Datasheet	MP2209DL-LF-Z Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Integrated Circuits
Manufacturer	Monolithic Power Systems Inc.
Packaging	Reel - TR
Status	Not For New Designs
Purpose	Step-Down
Topology	Buck
Output Type	Adjustable
Number of Outputs	1
Minimum Input Voltage	3V
Maximum Input Voltage	16V
Nominal Output Voltage (Min/Fixed)	0.8V
Maximum Output Voltage	14.4V
Output Current	2A
Frequency - Switching	600kHz
Synchronous Rectifier	Yes
Temperature Range - Operating	-40°C to 85°C (TA)
Mounting	SMD (SMT)
Case / Package	14-QFN (3x4)
Win Source Part Number	041756-MP2209DL-LF-Z
Ultra Librarian 3D Model	Ultra Librarian MP2209DL-LF-Z CAD Model

Alternative Products

Description

The Monolithic Power Systems Inc. MP2209DL-LF-Z is a step-down buck adjustable integrated circuit with a maximum input voltage of 16V and a nominal output voltage of 0.8V.

Switching Frequency: 600kHz
Maximum Output Voltage: 14.4V
Outputs: single output
Output Current: 2A
Rectifier: synchronous rectifier
Temperature Range: -40°C to 85°C
Package: 14-QFN (3x4) package
Common Use: integrated circuits
Status: not for new designs
Purpose: step-down
Popularity: medium popularity
Supply and Demand: balance
