Same model may have multiple batches, images only for reference.

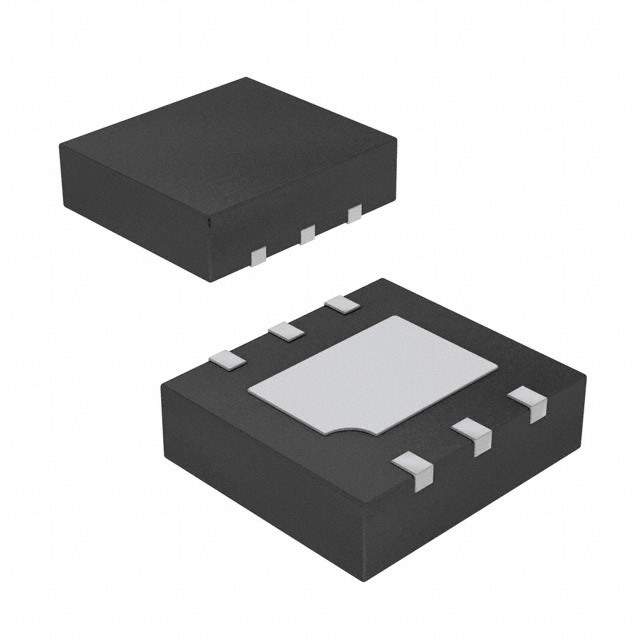

MP2489DQ-LF-P Real Image
Same model may have multiple batches, images only for reference.

MP2489DQ-LF-P

Part No MP2489DQ-LF-P
Manufacturer Monolithic Power Systems Inc.
Catalog Board Mount LED Drivers
Description IC LED DRIVER
Datasheet
MP2489DQ-LF-P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Monolithic Power Systems Inc.
Packaging Reel package
Type DC DC Regulator
Topology Step-Down (Buck)
Internal Switch(s) Yes
Number of Outputs 1
Voltage Supply MIN 6V
Voltage Supply MAX 60V
Output Current per Channel 1A
Frequency 600kHz
Dimming Analog, PWM
Applications Automotive, Backlight, Lighting, Signage
Operating Temperature Range -40°C ~ 125°C (TJ)
Mounting SMD
Package 6-VDFN Exposed Pad
Manufacturer Package 6-QFN (3x3)
Win Source Part Number 789131-MP2489DQ-LF-P
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MP2489DQ-LF-P CAD Model

Description

The MP2489DQ-LF-P is a DC DC regulator from Monolithic Power Systems Inc.

  • Applications: Automotive, backlight, lighting, signage
  • Input Voltage: 6V to 60V
  • Frequency: 600kHz
  • Topology: Step-down (buck)
  • Number of Outputs: 1
  • Dimming: Analog and PWM
  • Output Current Per Channel: 1A
  • Package: 6-QFN (3x3)
