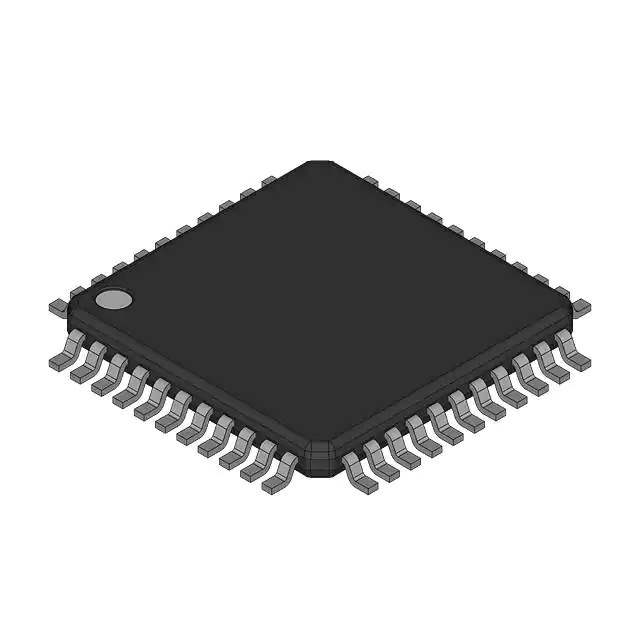

S9S08AW16AE0CLDR

Part No S9S08AW16AE0CLDR
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microcontrollers
Description IC MCU 8BIT 16KB FLASH 44LQFP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microcontrollers
Mfr Freescale Semiconductor - NXP
Series S08
Package Bulk
Product Status Active
Programmable Not Verified
Core Processor S08
Core Size 8-Bit
Speed 40MHz
Connectivity I2C, SCI, SPI
Peripherals LVD, POR, PWM, WDT
Number of I/O 34
Program Memory Size 16KB (16K x 8)
Program Memory Type FLASH
RAM Size 1K x 8
Voltage - Supply (Vcc/Vdd) 2.7V ~ 5.5V
Data Converters A/D 8x10b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 44-LQFP
Supplier Device Package 44-LQFP (10x10)
Base Product Number S9S08
Standard Package 1 pcs
ECCN 3A991A2
HTSUS 8542.31.0001
Win Source Part Number 311158-S9S08AW16AE0CLDR
Ultra Librarian 3D Model Ultra Librarian S9S08AW16AE0CLDR CAD Model

Description

The S9S08AW16AE0CLDR is an 8-bit microcontroller from the S08 series by Freescale Semiconductor - NXP.

  • Application: Embedded applications
  • Core Processor Speed: 40MHz
  • Package: Bulk
  • Standard Package Size: 1 piece
  • I/O Pins: 34
  • Connectivity: I2C, SCI, and SPI
  • Program Memory Size: 16KB (16K x 8)
  • Memory Type: Flash
  • RAM Size: 1K x 8
  • Data Converters: A/D 8x10b
  • Temperature Range: -40°C to 85°C
  • Voltage Supply Range: 2.7V to 5.5V
  • Package: 44-LQFP
  • Mounting: Surface mount applications
  • Product Status: Active
