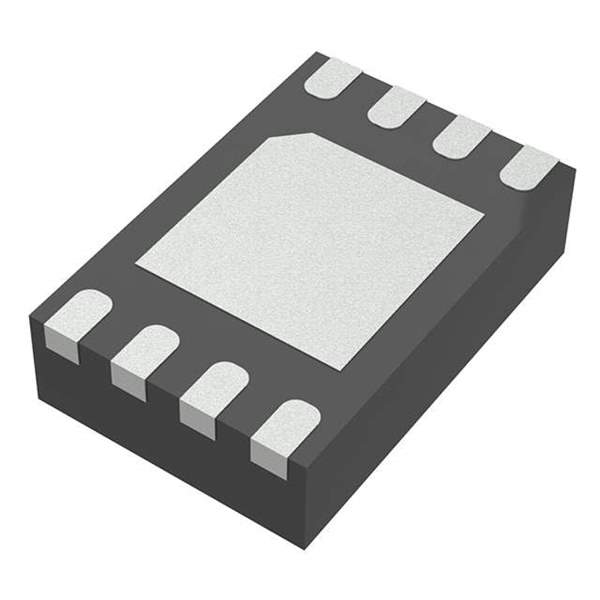

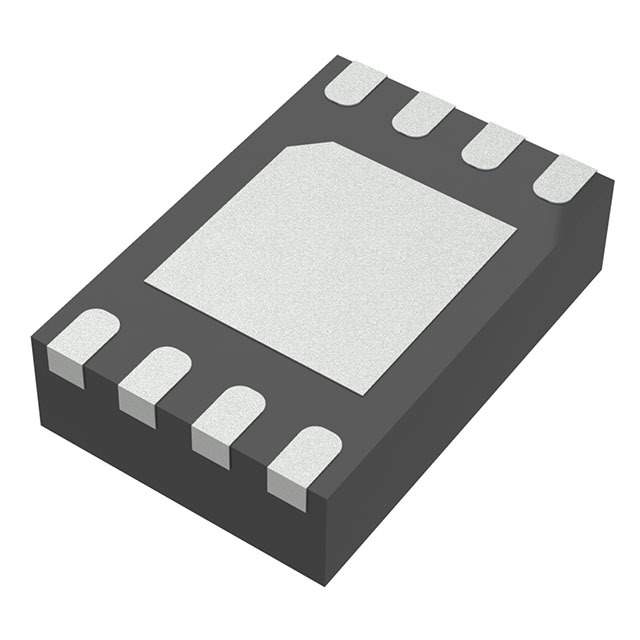

MP3304BDD-LF-Z Real Image
Same model may have multiple batches, images only for reference.

MP3304BDD-LF-Z

Part No MP3304BDD-LF-Z
Manufacturer Monolithic Power Systems Inc.
Catalog PMIC - LED Drivers
Description LED Driver 30 Segment 8-Pin QFN EP T/R | IC LED DRIVER
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Monolithic Power Systems Inc.
Packaging Tape and Reel
Type DC DC Regulator
Topology Step-Up (Boost)
Internal Switch(s) Yes
Voltage - Supply (Minimum) 3V
Voltage - Supply (Maximum) 6V
Voltage - Output 24V
Current - Output / Channel 1.33A (Switch)
Frequency 2.2MHz
Dimming PWM
Applications Backlight
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 8-TFDFN Exposed Pad
Supplier Device Package 8-QFN (2x3)
Manufacturer Pack Quantity 5,000
MSL Level 1 (Unlimited)
Win Source Part Number 715409-MP3304BDD-LF-Z
Family Name MP3304
Introduction Date April 19, 2010
ECCN EAR99
Country of Origin China
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian MP3304BDD-LF-Z CAD Model

Description

The MP3304 is a high-efficiency, synchronous, fixed frequency, step-up converter with an integrated internal switch.

  • Output Current: Up to 1.33A @ 24V Output Voltage (3V to 6V Input)
  • Switching Frequency: 2.2MHz
  • Dimming Function: PWM
  • Operating Temperature: -40°C to 85°C
  • Package: 8-pin 2x3 QFN
