The LM3560TLX-20/NOPB is a sophisticated LED driver integrated circuit (IC) from the renowned semiconductor manufacturer, Texas Instruments. Designed to provide a high level of performance and flexibility, this IC is a perfect fit for a wide range of applications, including flash and torch functionality in mobile phones, digital cameras, and other portable devices.

Key Features

• Adjustable Output: The LM3560TLX-20/NOPB features an adjustable output current, which allows for precise control over the LED brightness, enhancing the user experience and device functionality.
• High Efficiency: With an emphasis on power efficiency, this IC maximizes battery life by minimizing power loss, making it ideal for battery-powered applications.
• Synchronous Operation: It supports synchronous operation, which reduces noise and improves performance in sensitive applications.
• Thermal Management: The built-in thermal management system protects the device under high-power operation, ensuring reliability and longevity.

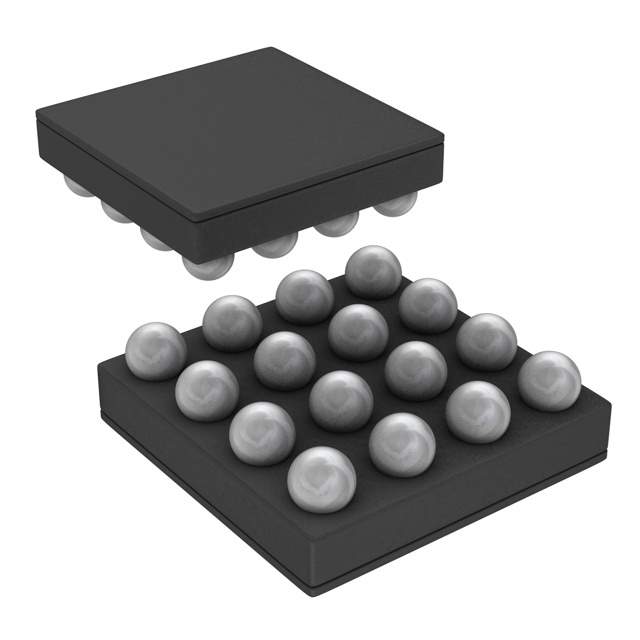

• Compact Design: The LM3560TLX-20/NOPB comes in a small package, making it suitable for space-constrained applications.

Applications

The versatility of the LM3560TLX-20/NOPB allows it to be used in a variety of applications. Its primary use is to drive LEDs for camera flash in smartphones and tablets, but it can also be utilized in portable medical devices, video cameras, and other handheld electronics that require high-quality LED illumination.

Quality and Reliability

Texas Instruments is known for its commitment to quality, and the LM3560TLX-20/NOPB is no exception. The device is RoHS compliant and comes with the NOPB (no lead (Pb)) designation, indicating it is manufactured with a focus on environmental safety and sustainability. Furthermore, the IC's robust design ensures that it meets the stringent requirements of industrial performance standards.

Ordering Information

For purchasing and further technical details, the LM3560TLX-20/NOPB can be ordered directly from Texas Instruments or through authorized distributors. The product is available in tape and reel packaging, facilitating easy integration into manufacturing processes.
