Same model may have multiple batches, images only for reference.

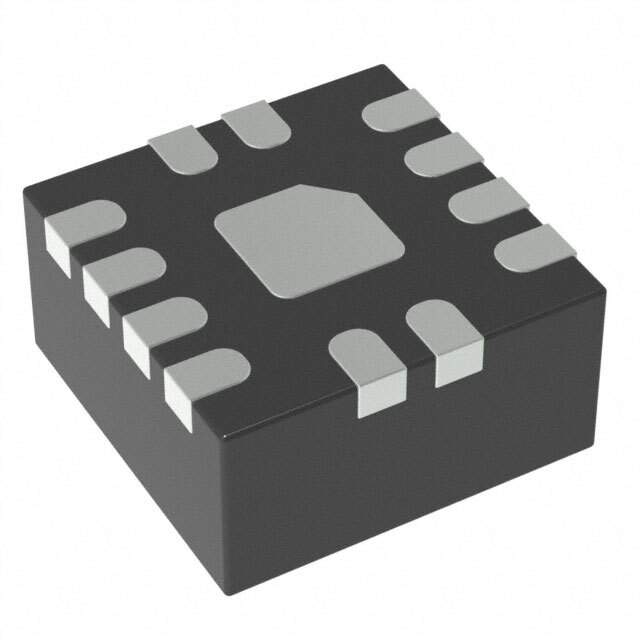

MP5073GG-P Real Image
Same model may have multiple batches, images only for reference.

MP5073GG-P

Part No MP5073GG-P
Manufacturer Monolithic Power Systems Inc.
Catalog PMIC - Power Distribution Switches, Load Drivers
Description IC PWR SWITCH P-CHAN 1:1 12QFN / Power Switch/Driver 1:1 P-Channel 2A 12-QFN (2x2)
Datasheet
MP5073GG-P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Power Distribution Switches, Load Drivers
Mfr Monolithic Power Systems Inc.
Package Tape & Reel
Switch Type General Purpose
Number of Outputs 1
Output Configuration High Side
Output Type P-Channel
Interface On/Off
Voltage - Load 0.5V ~ 5.5V
Supply Voltage - Operating 3V ~ 5.5V
Current - Output (Max) 2A
Rds On (Typ) 50mOhm
Features Load Discharge, Power Good, Slew Rate Controlled
Fault Protection Current Limiting (Adjustable), Over Temperature, UVLO
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting SMD (SMT)
Supplier Device Package 12-QFN (2x2)
Package / Case 12-VFQFN Exposed Pad
Base Product Number MP5073
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 1589-1194-2,1589-1194-6,1589-1194-1
Standard Package 500
Win Source Part Number 966219-MP5073GG-P
Ultra Librarian 3D Model Ultra Librarian MP5073GG-P CAD Model

Description

The MP5073GG-P is an integrated circuit (IC) power distribution switch manufactured by Monolithic Power Systems Inc.

  • Configuration: high-side output
  • Maximum Output: 2A
  • Voltage Load: 0.5V to 5.5V
  • Temperature Range: -40°C to 125°C
  • Package: 12-VFQFN exposed pad
  • Supplier Device Package: 12-QFN (2x2)
  • Features: load discharge, power good, and slew rate controlled input
  • Fault Protection: current limiting (adjustable), over-temperature, and UVLO
  • Category: PMIC - power distribution switches, load drivers
  • Alternative Parts: PTN36241GHXZ, SST12LP08-QXBE, SST12LP07A-QXBE, MD1213K6-G, TS3USBA225RUTR, and TCA6507RUER
