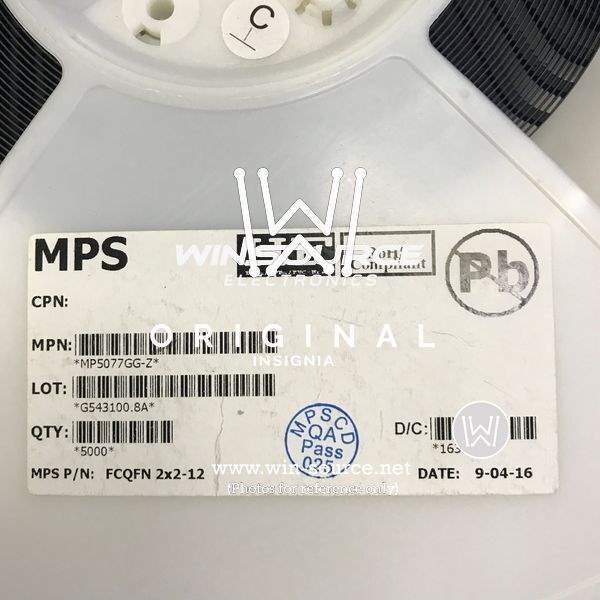

Same model may have multiple batches, images only for reference.
MP5077GG-Z Monolithic Power Systems Inc. – Price, Stock & Datasheet MP5077GG-Z real image MP5077GG-Z label picture MP5077GG-Z real image15514 MP5077GG-Z real image15515
MP5077GG-Z Monolithic Power Systems Inc. – Price, Stock & Datasheet MP5077GG-Z real image MP5077GG-Z label picture MP5077GG-Z real image15514 MP5077GG-Z real image15515
Same model may have multiple batches, images only for reference.

MP5077GG-Z

Part No MP5077GG-Z
Manufacturer Monolithic Power Systems Inc.
Catalog PMIC - Power Distribution Switches, Load Drivers
Description IC PWR SWITCH P-CHAN 1:1 12QFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Tape & Reel (TR);Cut Tape (CT);
Product Status Active
Switch Type General Purpose
Number of Outputs 1
Output Configuration High Side
Output Type P-Channel
Interface On/Off
Voltage - Load 0.5V ~ 5.5V
Voltage - Supply (Vcc/Vdd) 3V ~ 5.5V
Current - Output (Max) 7A
Rds On (Typ) 10mOhm
Features Load Discharge, Slew Rate Controlled
Fault Protection Current Limiting (Adjustable), Over Temperature, UVLO
Operating Temperature -40°C ~ 125°C (TJ)
Mounting Type Surface Mount
Supplier Device Package 12-QFN (2x2)
Package / Case 12-VFQFN
Ultra Librarian 3D Model Ultra Librarian MP5077GG-Z CAD Model

Description

The MP5077GG-Z is a P-channel load discharge switch with slew rate control from Monolithic Power Systems Inc. It is manufactured by Monolithic Power Systems Inc.

  • Output Configuration: High-Side
  • Maximum Output Current: 7A
  • Voltage Range: 3V to 5.5V
  • Rds On: 10mOhm (typical)
  • Over-Temperature Protection: Yes
  • Adjustable Current Limiting: Yes
  • UVLO Fault Protection: Yes
  • Package: 12-QFN (2x2)
  • Operating Temperature: -40°C to 125°C
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 5000
