Same model may have multiple batches, images only for reference.

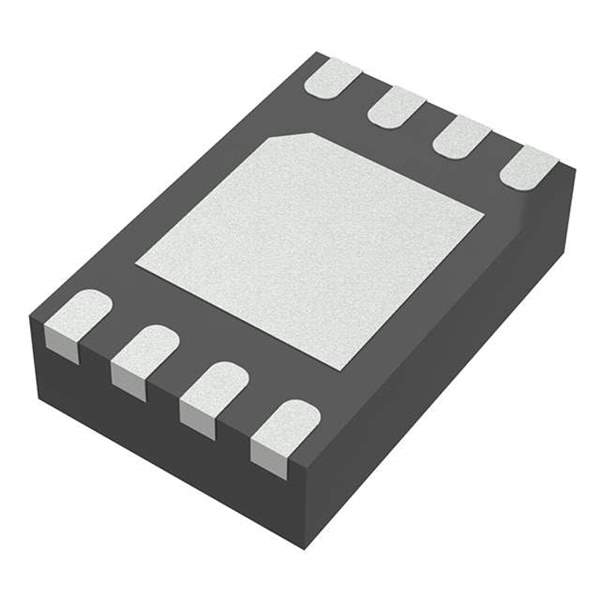

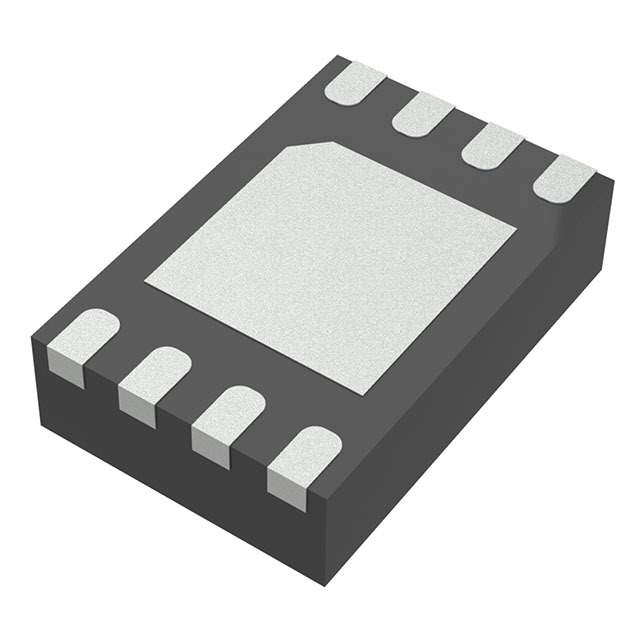

MP6205DD-LF-Z Real Image
Same model may have multiple batches, images only for reference.

MP6205DD-LF-Z

Part No MP6205DD-LF-Z
Manufacturer Monolithic Power Systems Inc.
Catalog PMIC - Power Distribution Switches, Load Drivers
Description IC CURR LIMIT SWITCH
Datasheet
MP6205DD-LF-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Monolithic Power Systems Inc.
Packaging Reel - TR
Status Active
Switch Type General Purpose
Number of Outputs 1
Voltage - Load 2.7 V to 5.5 V
Supply Voltage - Operating Not Required
Current - Output (Max) 500mA
Rds On (Typ) 90 mOhm
Features Status Flag
Fault Protection Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 8-QFN (2x3)
Win Source Part Number 059399-MP6205DD-LF-Z
Ultra Librarian 3D Model Ultra Librarian MP6205DD-LF-Z CAD Model

Description

The Monolithic Power Systems Inc. MP6205DD-LF-Z is a general-purpose switch designed for various applications.

  • Application: General-Purpose
  • Features: Status Flag
  • Fault Protection: Current Limiting, Over-Temperature, Reverse Current, Under-Voltage Lockout
  • Maximum Output Current: 500mA
  • Voltage Load Range: 2.7V to 5.5V
  • Rds(on) (Typ): 90 mOhm
  • Package: 8-QFN (2x3)
  • Operating Temperature: -40°C to 85°C (TA)
