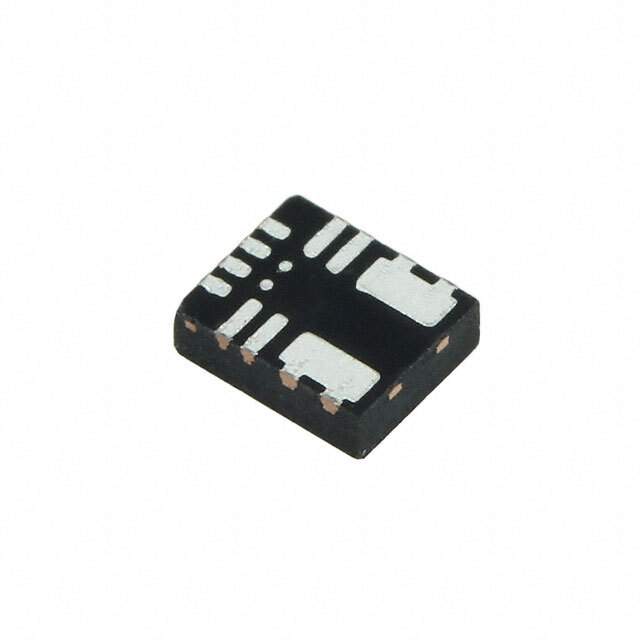

MPM3805AGQB-AEC1-Z Real Image
Same model may have multiple batches, images only for reference.

MPM3805AGQB-AEC1-Z

Part No MPM3805AGQB-AEC1-Z
Manufacturer Monolithic Power Systems Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 0.6-6V / Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 6V 600mA 2.6V - 6V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Monolithic Power Systems Inc.
Series Automotive, AEC-Q100
Package Tape & Reel
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 2.6V
Voltage - Input (Max) 6V
Voltage - Output 1 0.6 ~ 6V
Current - Output (Max) 600mA
Applications ITE (Commercial)
Features OCP, OTP, SCP, UVLO
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 12-PowerVFQFN Module
Dimension 0.12" L x 0.10" W x 0.04" H (3.0mm x 2.5mm x 0.9mm)
Supplier Device Package 12-QFN (3x2.5)
Base Product Number MPM3805
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 1589-2010-6,1589-2010-1,1589-2010-2
Standard Package 5,000
Win Source Part Number 1008763-MPM3805AGQB-AEC1-Z
Ultra Librarian 3D Model Ultra Librarian MPM3805AGQB-AEC1-Z CAD Model

Description

The MPM3805AGQB-AEC1-Z is a non-isolated PoL module that is ideal for use in automotive applications.

  • Protection: features overcurrent protection (OCP), overtemperature protection (OTP), short-circuit protection (SCP), and undervoltage lockout (UVLO) for reliable and safe operation.
  • Maximum Output Current: 600mA
  • Input Voltage: can accept input voltages between 2.6V and 6V.
  • Output Voltage: can be adjusted from 0.6V to 6V
  • Efficiency: is not specified.
  • Package: 12-PowerVFQFN module with a dimension of 0.12" L x 0.10" W x 0.04" H (3.0mm x 2.5mm x 0.9mm).
  • Supplied: tape and reel packaging
  • Package Quantity: standard package of 5,000.
  • Application: suitable for use in ITE (Commercial) applications.
  • Device Package: 12-QFN (3x2.5)
  • Temperature Range: -40°C to 125°C.
