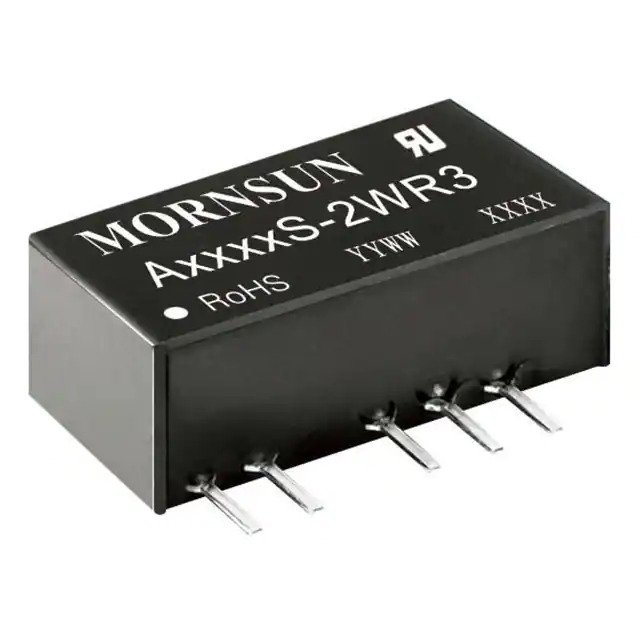

Same model may have multiple batches, images only for reference.
A2412S-2WR3 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

A2412S-2WR3

Part No A2412S-2WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 1W
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series A_S-2WR3 (2W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 83mA, 83mA
Power (Watts) 1.99 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features -
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 83%
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Size / Dimension 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm)
Supplier Device Package -
Control Features -
Approval Agency CB, CE, cURus, UL
Standard Number 62368-1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1372752-A2412S-2WR3
Ultra Librarian 3D Model Ultra Librarian A2412S-2WR3 CAD Model

Description

The A2412S-2WR3 is a 2W isolated module DC-DC converter manufactured by Mornsun America, LLC.

  • Application: Power Supply
  • Applications: ITE (Commercial)
  • Voltage - Input: 21.6V ~ 26.4V
  • Voltage - Output: 12V, -12V
  • Current - Output Max: 83mA
  • Size / Dimension: 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm)
  • Voltage - Isolation: 1.5 kV
  • Efficiency: 83%
  • Mounting Type: Through Hole
  • Package / Case: 7-SIP Module, 5 Leads
  • Approval Agency: CB, CE, cURus, UL
  • Series: A_S-2WR3
  • Packaging: Tube
  • Product Status: Active
