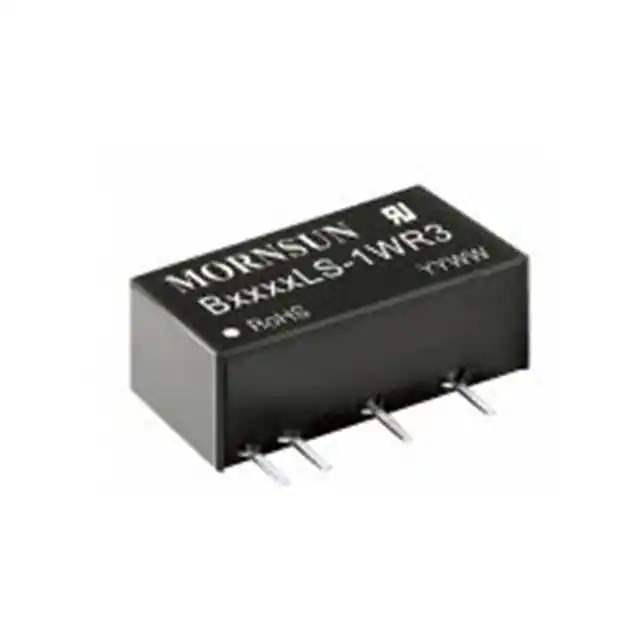

B0505LS-1WR3 MORNSUN Science& Technology Ltd. B0505LS-1WR3 Real Image B0505LS-1WR3 real image23449
B0505LS-1WR3 MORNSUN Science& Technology Ltd. B0505LS-1WR3 Real Image B0505LS-1WR3 real image23449
Same model may have multiple batches, images only for reference.

B0505LS-1WR3

Part No B0505LS-1WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr MORNSUN Science& Technology Ltd.
Series B_LS-1WR3 (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) 1 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 105°C
Efficiency 82%
Mounting Type Through Hole
Package / Case 7-SIP Module, 4 Leads
Size / Dimension 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm)
Approval Agency CB, CE, cURus
Base Product Number B0505LS
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 843158-B0505LS-1WR3
Ultra Librarian 3D Model Ultra Librarian B0505LS-1WR3 CAD Model

Description

The B_LS-1WR3 (1W) is an isolated module power supply designed for board mount DC-DC conversion.

  • Size: 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm)
  • Standard Package: 25 pcs
  • Input Voltage: 4.5V to 5.5V
  • Output Power (Max): 1W
  • Number of Outputs: 1
  • Output Voltage: 5V
  • Efficiency: 82%
  • Voltage Isolation: 1.5 kV
  • Application: ITE (Commercial)
  • Mounting Type: Through-Hole
  • Operating Temperature: -40°C to 105°C
  • Approvals: CB, CE, cURus
