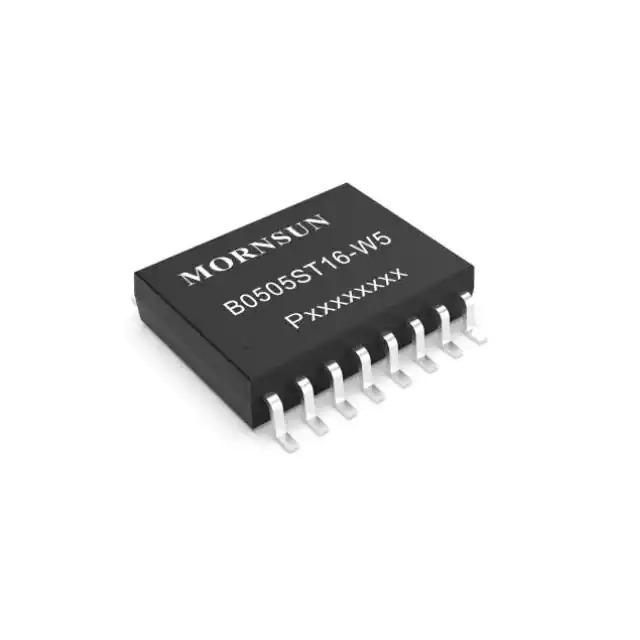

B0505ST16-W5 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

B0505ST16-W5

Part No B0505ST16-W5
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 3.3V 3.7V 5.0V 5
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series B0505ST16-W5 (0.5W)
Package Tape & Reel
Product Status Active
Type Isolated Module
Number of Outputs 4
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 3.3V
Voltage - Output 2 3.7V
Voltage - Output 3 5V
Voltage - Output 4 5.4V
Current - Output (Max) 150mA, 135mA, 100mA, 92mA
Power (Watts) 1.99 W
Voltage - Isolation 5 kV
Applications ITE (Commercial)
Features Adjustable Output
Temperature Range - Operating -55°C ~ 125°C (With Derating)
Efficiency 53%
Mounting Type Surface Mount
Package / Case 16-SOIC Module (0.295", 7.50mm Width)
Size / Dimension 0.41" L x 0.30" W x 0.10" H (10.3mm x 7.5mm x 2.7mm)
Supplier Device Package 16-SOIC
Control Features -
Approval Agency -
Standard Number 62368-1
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1372679-B0505ST16-W5
Ultra Librarian 3D Model Ultra Librarian B0505ST16-W5 CAD Model

Description

The B0505ST16-W5 (0.5W) is an isolated module from Mornsun America, LLC.

  • Type: Board Mount, DC-DC
  • Operating Temperature: -55°C to 125°C
  • Output Current: 150mA
  • Number of Outputs: 4
  • Output Voltage: 3.3V, 3.7V, 5V, 5.4V
  • Package: 16-SOIC Module
  • Mounting Type: Surface Mount
  • Isolation: 5kV
  • Size: 0.41" L x 0.30" W x 0.10" H (10.3mm x 7.5mm x 2.7mm)
  • Application: ITE (Commercial)
  • Efficiency: 53%
  • Standard: 62368-1
