Same model may have multiple batches, images only for reference.

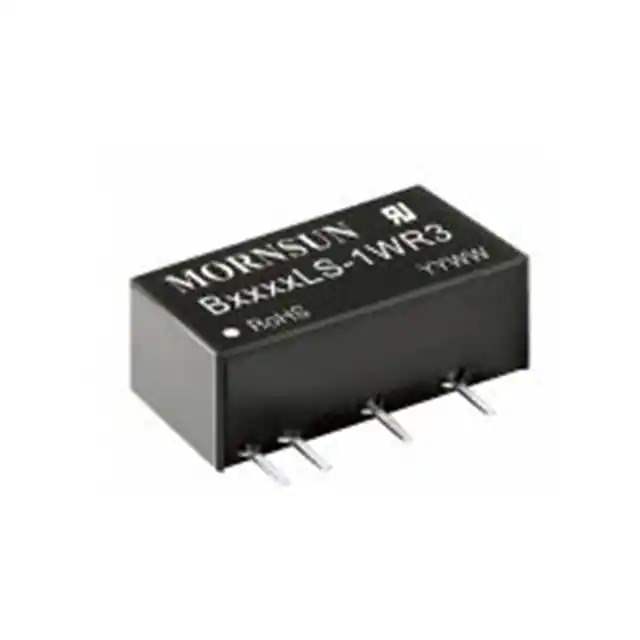

B0509S-1WR3 Real Image
Same model may have multiple batches, images only for reference.

B0509S-1WR3

Part No B0509S-1WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 9V 1W / Isolated Module DC DC Converter 1 Output 9V 111mA 4.5V - 5.5V Input
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr MORNSUN Science& Technology Ltd.
Series B_S-1WR3 (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 9V
Current - Output (Max) 111mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 83%
Mounting Type Through Hole
Package / Case 4-SIP Module
Size / Dimension 0.46" L x 0.24" W x 0.40" H (11.6mm x 6.0mm x 10.2mm)
Approval Agency CE, cURus
Base Product Number B0509S
Standard Package 43 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 862857-B0509S-1WR3
Ultra Librarian 3D Model Ultra Librarian B0509S-1WR3 CAD Model

Description

The B_S-1WR3 is a 1W isolated DC-DC converter module designed for board mounting.

  • Output: Single
  • Voltage Isolation: 3kV
  • Input Voltage: 4.5V to 5.5V
  • Output Voltage: 9V
  • Maximum Output Current: 111mA
  • Application: ITE
  • Size: 0.46" L x 0.24" W x 0.40" H
  • Package: Tube
  • Efficiency: 83%
  • Operating Temperature Range: -40°C to 105°C
  • Product Status: Active
  • Manufacturer: MORNSUN Science & Technology Ltd.
