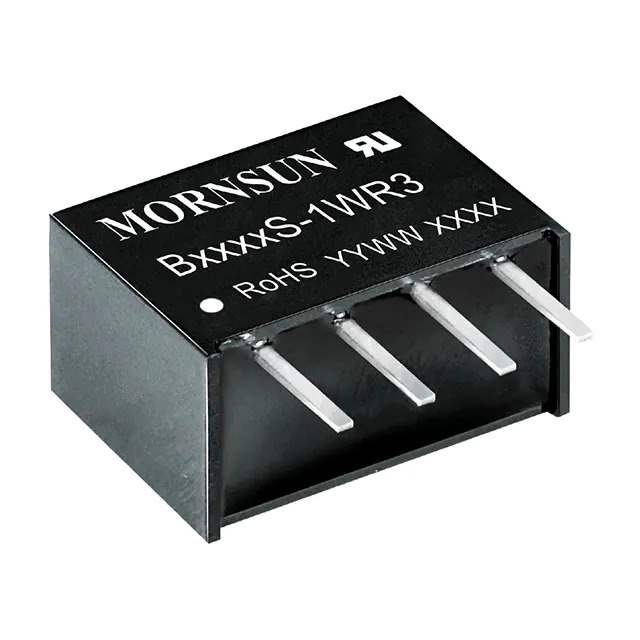

B1205S-1WR3

Part No B1205S-1WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 1W
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr MORNSUN Science& Technology Ltd.
Series B_S-1WR3 (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) 1 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 80%
Mounting Type Through Hole
Package / Case 4-SIP Module
Size / Dimension 0.46" L x 0.24" W x 0.40" H (11.6mm x 6.0mm x 10.2mm)
Approval Agency CB, CE, cURus, UL
Standard Number 62368-1
Standard Package 43 pcs
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 862904-B1205S-1WR3
Ultra Librarian 3D Model Ultra Librarian B1205S-1WR3 CAD Model

Description

The 862904-B1205S-1WR3 is a 1W isolated module DC-DC converter from MORNSUN Science & Technology Ltd.

  • Series: B_S-1WR3
  • Application: Power supplies in board mount applications
  • Voltage Isolation: 1.5 kV
  • Maximum Output Current: 200mA
  • Input Voltage: 10.8V to 13.2V
  • Output Voltage: 5V
  • Efficiency: 80%
  • Package: 4-SIP module
  • Application: ITE (Commercial)
  • Temperature Range: -40°C to 105°C
  • Standards: CB, CE, cURus, and UL
  • Status: Active product
