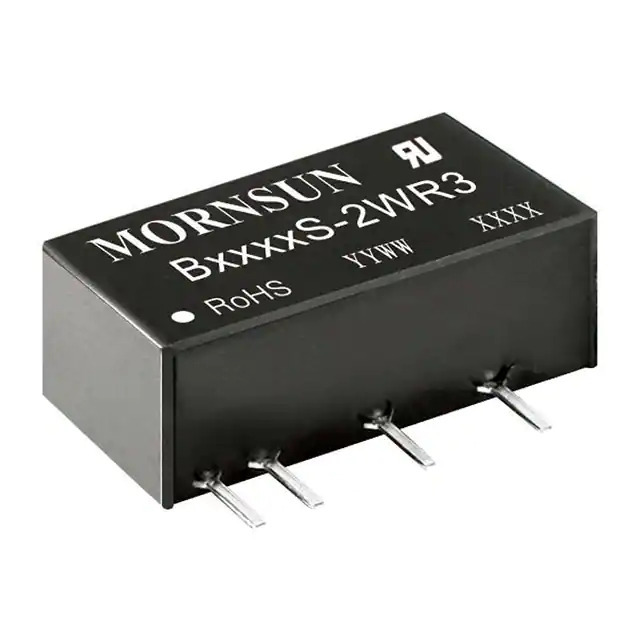

B2415S-2WR3 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

B2415S-2WR3

Part No B2415S-2WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 15V 1W / Isolated Module DC DC Converter 1 Output 15V 133mA 21.6V - 26.4V Input
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series B_S-2WR3 (2W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Voltage - Output 1 15V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 133mA
Power (Watts) 1.99 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features -
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 86%
Mounting Type Through Hole
Package / Case 7-SIP Module, 4 Leads
Size / Dimension 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm)
Supplier Device Package -
Control Features -
Approval Agency CB, CE, cURus, UL
Standard Number 62368-1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1356071-B2415S-2WR3
Ultra Librarian 3D Model Ultra Librarian B2415S-2WR3 CAD Model

Description

The 1356071-B2415S-2WR3 is a power supply module manufactured by Mornsun America, LLC.

  • Series: B_S-2WR3
  • Package / Case: 7-SIP module, 4 leads
  • Operating Temperature: -40°C to 105°C, with derating
  • Input Voltage: 21.6V to 26.4V
  • Output Voltage: 15V
  • Output Current: 133mA
  • Power Rating: 1.99W
  • Efficiency: 86%
  • Voltage Isolation: 1.5kV
  • Application: ITE (Commercial)
  • Approvals: CB, CE, cURus, and UL
  • Mounting Type: Through Hole
  • Dimensions: 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm)
