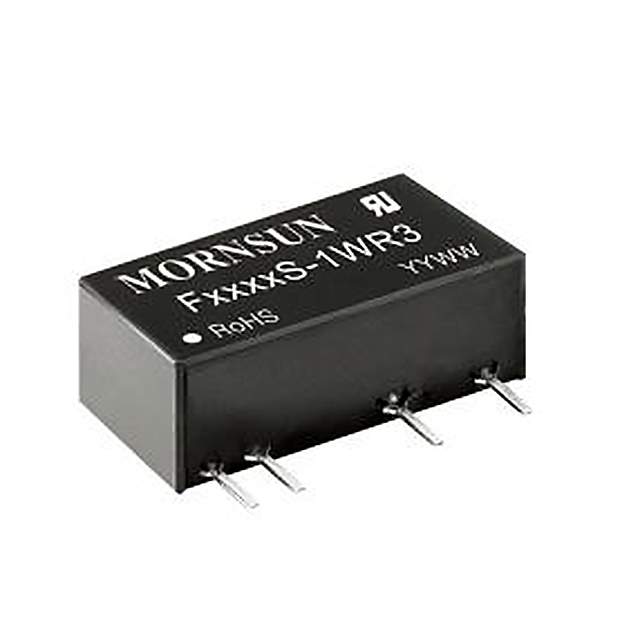

F0524S-1WR3 Real Image
Same model may have multiple batches, images only for reference.

F0524S-1WR3

Part No F0524S-1WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 24V 1W
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Estimated Pruduction Lead Time 4 Weeks
Features Isolated Module DC DC Converter Output 24V - - - 42mA 4.5V - 5.5V Input
Manufacturer MORNSUN Science& Technology Ltd.
Series F0524S-1WR3 (1W)
Package Tube
Operating Temperature Range -40°C ~ 105°C (With Derating)
Mounting Through Hole
Package 7-SIP Module, 4 Leads
Family Name F0524S
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 2725-F0524S-1WR3, -2729-F0524S-1WR3
Quantity per package 25
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 871360-F0524S-1WR3
Ultra Librarian 3D Model Ultra Librarian F0524S-1WR3 CAD Model

Description

The F0524S-1WR3 (1W) is an isolated module DC DC converter designed and manufactured by MORNSUN Science & Technology Ltd.

  • Package: 7-SIP module with 4 leads
  • Mounting: Through Hole
  • Operating Temperature: -40°C to 105°C (with derating)
  • Output: 24V @ 42mA
  • Input: 4.5V to 5.5V
  • Family: F0524S
  • Category: Power Supplies - Board Mount
  • ECCN: EAR99
  • Estimated Production Lead Time: 4 weeks
  • MSL Level: 1 (unlimited)
  • HTSUS: 8504.40.9580
  • Package Type: Tube
  • Quantity per Package: 25
