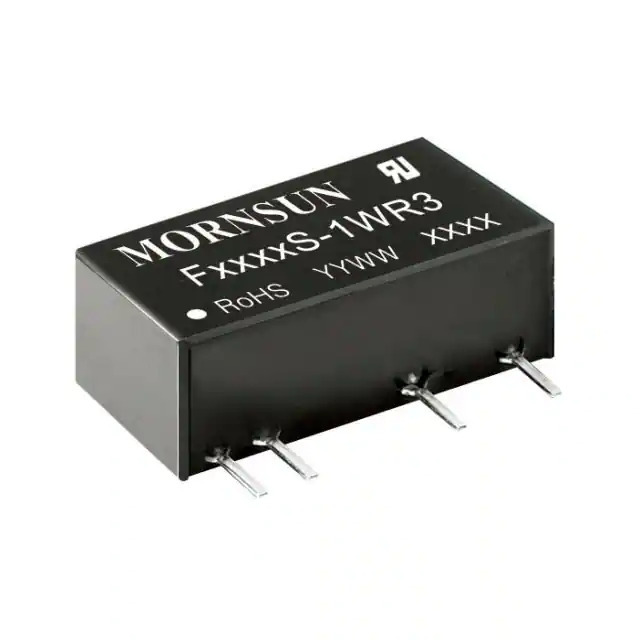

F1205S-1WR3 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

F1205S-1WR3

Part No F1205S-1WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA 10.8V - 13.2V Input
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series F_S-1WR3 (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 5V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 200mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features -
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 80%
Mounting Type Through Hole
Package / Case 7-SIP Module, 4 Leads
Size / Dimension 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm)
Supplier Device Package -
Control Features -
Approval Agency CB, CE, cURus, UL
Standard Number 62368-1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1372721-F1205S-1WR3
Ultra Librarian 3D Model Ultra Librarian F1205S-1WR3 CAD Model

Description

The F_S-1WR3 (1W) series from Mornsun America, LLC is an isolated module DC-DC converter designed for board mount applications.

  • Temperature Range: -40°C to 105°C (with derating)
  • Application: ITE (Commercial)
  • Voltage Input: 10.8V to 13.2V
  • Voltage Output: 5V
  • Output Current (Max): 200mA
  • Power Rating: 1W
  • Package: 7-SIP Module
  • Mounting Type: Through-Hole
  • Efficiency: 80%
  • Approvals: CB, CE, cURus, UL
  • Product Status: Active
  • Packaging: Tube
