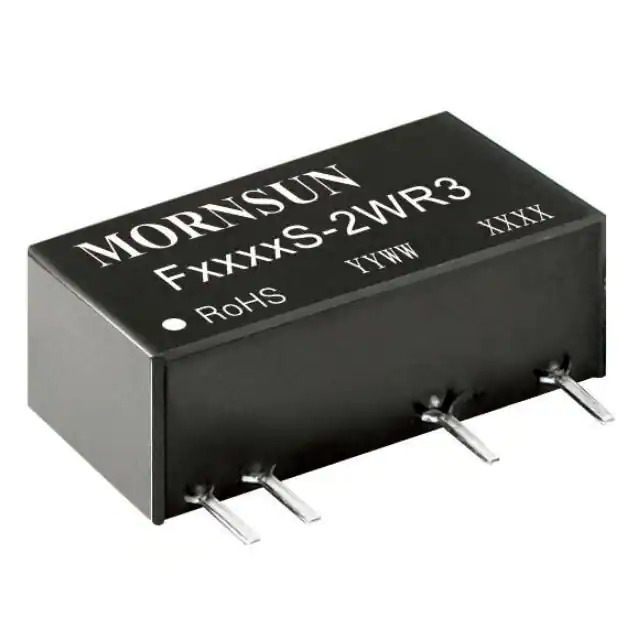

Same model may have multiple batches, images only for reference.

F1215S-2WR3

Get a Quote

Part No	F1215S-2WR3
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 15V 1W
Sample
Rohs State	Need to verify
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Mornsun America, LLC
Series	F_S-2WR3 (2W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	15V
Voltage - Output 2	-
Voltage - Output 3	-
Voltage - Output 4	-
Current - Output (Max)	133mA
Power (Watts)	1.99 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial)
Features	-
Temperature Range - Operating	-40°C ~ 105°C (With Derating)
Efficiency	85%
Mounting Type	Through Hole
Package / Case	7-SIP Module, 4 Leads
Size / Dimension	0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm)
Supplier Device Package	-
Control Features	-
Approval Agency	CB, CE, cURus, UL
Standard Number	62368-1
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1372886-F1215S-2WR3
Ultra Librarian 3D Model	Ultra Librarian F1215S-2WR3 CAD Model

Alternative Products

Description

The 1372886-F1215S-2WR3 is a power supply module from Mornsun America, LLC.

Series: F_S-2WR3
Power: 2W isolated module
Package: 7-SIP
Number of Leads: 4
Mounting Type: Through-Hole
Voltage Input Range: 10.8V to 13.2V
Output: Single output of 15V
Maximum Output Current: 133mA
Efficiency: 85%
Application: ITE (Commercial)
Operating Temperature: -40°C to 105°C (with derating)
Size: 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm)
Approvals: CB, CE, cURus, and UL
Voltage Isolation: 3 kV
Product Status: Active
REACH: Unaffected
