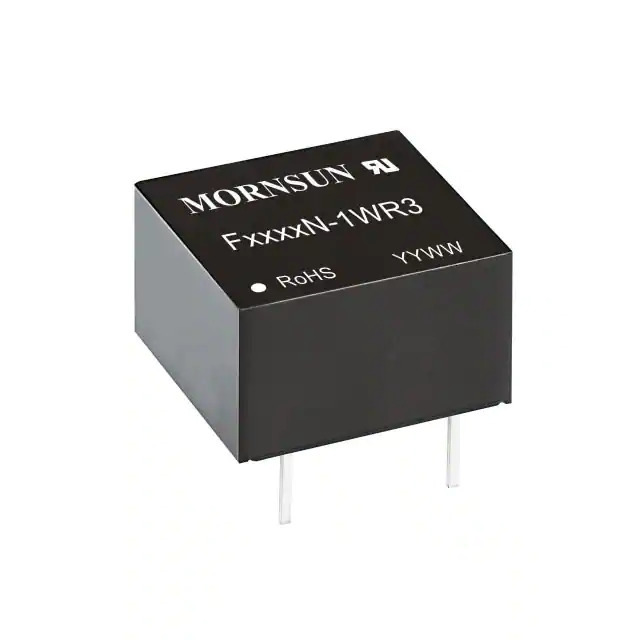

Same model may have multiple batches, images only for reference.
F2405N-1WR3 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

F2405N-1WR3

Part No F2405N-1WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA 21.6V - 26.4V Input
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series F_N-1WR3 (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Voltage - Output 1 5V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 200mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features -
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 79%
Mounting Type Through Hole
Package / Case 7-DIP Module, 4 Leads
Size / Dimension 0.50" L x 0.40" W x 0.32" H (12.7mm x 10.2mm x 8.2mm)
Supplier Device Package -
Control Features -
Approval Agency CE
Standard Number 62368-1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1372761-F2405N-1WR3
Ultra Librarian 3D Model Ultra Librarian F2405N-1WR3 CAD Model

Description

The 1372761-F2405N-1WR3 is a power supply module designed for board mount DC-DC converters manufactured by Mornsun America, LLC.

  • Output Type: Isolated
  • Voltage - Output 1: 5V
  • Current - Output (Max): 200mA
  • Voltage - Input (Min): 21.6V
  • Voltage - Input (Max): 26.4V
  • Power (Watts): 1W
  • Applications: ITE (Commercial)
  • Efficiency: 79%
  • Voltage - Isolation: 3 kV
  • Mounting Type: Through Hole
  • Package / Case: 7-DIP Module, 4 Leads
  • Size / Dimension: 0.50" L x 0.40" W x 0.32" H (12.7mm x 10.2mm x 8.2mm)
  • Approval Agency: CE
