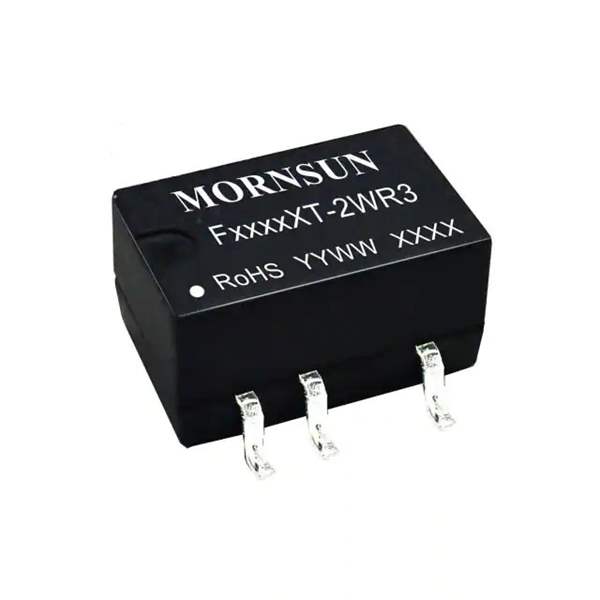

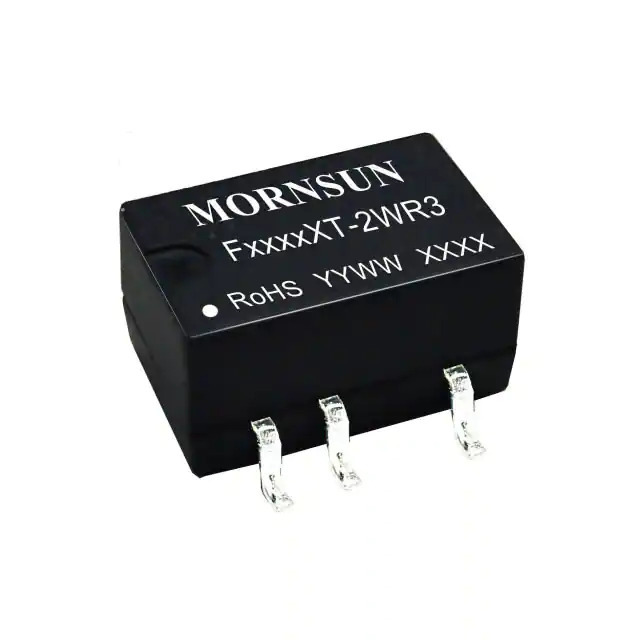

F2405XT-2WR3 MORNSUN Science& Technology Ltd.
Same model may have multiple batches, images only for reference.

F2405XT-2WR3

Part No F2405XT-2WR3
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 2W
Sample
Rohs State Need to verify
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mornsun America, LLC
Series F_XT-2WR3 (2W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Voltage - Output 1 5V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 400mA
Power (Watts) 2 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features -
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 83%
Mounting Type Surface Mount
Package / Case 8-SMD Module, 5 Leads
Size / Dimension 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm)
Supplier Device Package -
Control Features -
Approval Agency CB, CE, cURus, UL
Standard Number 62368-1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1372801-F2405XT-2WR3
Ultra Librarian 3D Model Ultra Librarian F2405XT-2WR3 CAD Model

Description

The Mornsun America, LLC F2405XT-2WR3 is an isolated module DC-DC converter designed for power supply applications in ITE (Commercial) devices.

  • Size: 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm)
  • Maximum Output Current: 400mA
  • Power Rating: 2W
  • Input Voltage Range: 21.6V to 26.4V
  • Output Voltage: 5V
  • Package: 8-SMD
  • Leads: 5
  • Mounting: Surface Mount
  • Temperature Range: -40°C to 105°C (with derating)
  • Approval Agencies: CB, CE, cURus, and UL
